Current frontiers in the clinical research of coronary physiology

Corresponding Author:

Colin Berry
West of Scotland Heart & Lung Centre, Golden Jubilee National Hospital
Agamemnon Street, Clydebank, G81 4DY, UK
Tel: +44 0 141 330 1671, +44 0 141 951 5000
Fax: +44 0 141 330 6794
E-mail: colin.berry@glasgow.ac.uk

Abstract

Assessment of coronary physiology has potential diagnostic value when combined with invasive angiography for the assessment and treatment of patients presenting with chest pain. In this article, we review the rationale and evidence base f r the measurement of fractional flow reserve, coronary flow reserve and the index f microvascular resistance in stable coronary artery disease and in acute c r nary syndromes. The current and future role of these physiological tests in utine clinical practice is also considered.

Keywords

Coronary artery disease, coronary flow reserve, fractional flow reserve, index of microvascular resistance, microvascular function

Coronary artery disease (CAD) is the major cause of premature morbidity and mortality, and in the UK 726,000 men and 393,000 women aged between 35 and 75 suffer from angina pectoris [1,2]. Angina is due to a mismatch in the supply or demand of blood flow to the myocardium resulting in the development of ischemia. Factors which may limit myocardial perfusion include hypotension, obstructive CAD and increased microvascular resistance. By angiographic criteria, flowlimiting coronary artery disease is typically associated with a reduction in the diameter of the left main coronary artery by at least 50% or of any other epicardial artery by at least 70% [3]. In practice, the relationships between coronary flow and stenosis severity are much more complex and an anatomical assessment of CAD alone is inadequate to accurately identify functionally significant disease.

Angina and inducible ischemia may occur in the absence of a flow-limiting coronary artery stenosis. When the etiology is attributed to coronary microvascular dysfunction then the diagnosis is microvascular angina. However, epicardial CAD and microvascular dysfunction may coexist in the same patient, explaining why angina may persist after successful stenting with percutaneous coronary intervention (PCI).

Recent advances in the assessment of myocardial blood flow based on coronary guidewire pressure and temperature sensors have enabled direct measurement of lesion-level ischemia and related parameters of microvascular function. Compared with PCI guided by visual interpretation of the angiogram, pressure wire guided PCI improves clinical outcomes and is cost-effective. This technology also has the potential to provide clinically relevant information in patients with angina and a normal or near normal coronary angiogram.

Theoretical basis of coronary physiology

Fractional flow reserve

Within the physiological range of perfusion pressures, vasoconstriction and vasodilatation of the distal coronary resistance vessels (those with a diameter <500 μm) preserve myocardial perfusion through auto-regulation of microvascular tone. In the presence of an obstructive epicardial coronary artery stenosis, there is reduced perfusion pressure over the stenosis resulting in compensatory vasodilatation of these autoregulatory resistance vessels [4]. When coronary resistance is minimized with the use of a potent vasodilator, such as adenosine, there is an approximately linear relationship between coronary perfusion pressure and blood flow within the physiological blood pressure range. Therefore, a decrease in pressure across a stenosis leads to a reduction in myocardial blood flow. The ratio of the pressure distal to a coronary artery stenosis (P_d) and aortic pressure (P_a) can then be used to estimate the functional severity of the lesion during hyperemia.

The fractional flow reserve (FFR) is an index of the physiological significance of a coronary stenosis and is defined as the ratio of maximal blood flow in a stenotic artery to normal maximal flow. FFR is calculated as: FFR = P_d/P_a, during maximal hyperemia. When compared with the use of multiple noninvasive tests, the FFR threshold for discriminating lesion-level ischemia is approximately 0.75, with a normal value for all arteries of 1.0. In order to increase measurement sensitivity, a threshold of 0.80 has been adopted [5], therefore FFR values between 0.75 and 0.80 are within an intermediate ‘gray-zone,’ in which physician decision-making informed by the totality of clinical information becomes even more important. FFR may be corrected for collateral blood flow by measuring a coronary wedge pressure (FFR_myocardial = FFR_coronary + FFR_collateral) [6]. In all cases, the treatment decision based on FFR should be informed by coronary stenosis characteristics, including lesion location and feasibility of revascularization, and patient factors, such as the presence or absence of symptoms, disease severity and co-morbidities.

Hyperemia

FFR, by definition, requires a reduction in microvascular tone through inducible coronary hyperemia. Hyperemia may be induced by systemic or intracoronary administration of vasodilator drugs, including adenosine, nicorandil, papverine, sodium nitroprusside or even radiographic contrast media. Currently, adenosine is used most frequently, although nicorandil and papaverine are alternative options that are commonly used in by cardiologists in Asia. Adenosine activates A₂ receptor subtypes in vascular smooth muscle resulting in vasodilation and a hemodynamic response to systemic adenosine would be expected [7]. If a submaximal response to adenosine occurs then the FFR may be overestimated resulting in underestimation of the functional significance of a coronary lesion [8]. Theoretically, a submaximal response may also occur in patients with diffuse coronary disease, acute myocardial infarction (MI), myocardial bridging and in patients with marked elevation of central venous pressure (e.g., acute heart failure). Regadenoson is a specific A_2A adenosine receptor agonist, unlike adenosine which acts on A₁, A_2A, A_2B and A₃ receptors. Compared with adenosine, regadenoson is better tolerated but much more expensive, at least out with the USA [9].

Adenosine-free coronary artery lesion assessment: Resting P_d/P_a& iFR

Resting translesional coronary pressure gradients have also been proposed as a measure of stenosis severity in order to minimize the use of adenosine and its associated side effects. This concept was first considered many years ago and considered to be diagnostically inferior to hyperemic indices [10]. Nevertheless, resting pressure indices have been revisited and now include resting P_d/P_a (whole cardiac cycle) and diastolic indices of coronary pressure, including the instantaneous wave-free ratio (iFR) and diastolic P_d/P_a.

Although initially proposed as an ‘adenosine-free’ index with an ischemic threshold of 0.83, the implementation of iFR has evolved into a hybrid with adenosine and with a different ischemic threshold (0.89) allowing for imprecision in the measurement (range 0.86–0.93). Whereas FFR averages the relative distal coronary pressure over the whole cardiac cycle, iFR measures coronary pressure segmented to a specific part of diastole (25% into diastole as defined by the dicrotic notch, to 5 ms before the end of diastole). Prospective studies of iFR and P_d/P_a, including VERIFY [11], and a pooled analysis (RESOLVE) [12], have found iFR and P_d/P_a to have similar and moderate diagnostic accuracy compared with FFR.

Fractional flow reserve in stable coronary artery disease

The ‘ischemia hypothesis’ supposes that relief of ischemia by coronary revascularization leads to improved clinical outcomes. In patients with stable CAD, the neutral results of the Optimal Medical Therapy with or without PCI for Stable Coronary Disease (COURAGE) and Bypass Angioplasty Revascularization Investigation 2 Diabetes (BARI-2D) clinical trials have called into question the clinical benefits of revascularization by PCI [13–15].

In COURAGE, 2287 patients with stable angina and visually assessed severe coronary stenosis were randomized to PCI or no PCI. At a median follow-up of 4.6 years, there was no difference in the composite primary end point of death and MI, or in the secondary end points of death, MI, stroke or hospitalization for acute coronary syndrome. BARI-2D, randomized 2368 patients with both Type 2 diabetes mellitus and stable CAD in a 2 x 2 factorial design to either prompt revascularization with intensive medical therapy or intensive medical therapy alone and to undergo either insulin-sensitization or insulin-provision therapy. At 5 years, there was no difference in the primary end point of death from any cause, or the principal secondary end point (a composite of death, MI or stroke), for patients who underwent revascularization compared with intensive medical therapy. However, these studies used angiography alone to assess the functional significance of coronary lesions. This almost certainly led to the incorrect categorization of lesions, resulting in inappropriate deferral of PCI. In addition, PCI of nonischemic lesions exposes the patient to the inherent risks of PCI without any likelihood of clinical benefit and with additional unnecessary cost.

The European Society of Cardiology guidelines give FFR a class 1A recommendation for the functional assessment of coronary artery stenoses of intermediate angiographic severity (50–90%) in order to identify those lesions that are likely to require revascularization [16], and, partly as a result of this, adoption of FFR has been increasing in the UK [17] and internationally [18].

The Fractional Flow Reserve to Determine the Appropriateness of Angioplasty in Moderate Coronary Stenosis (DEFER) trial was the first prospective randomized trial to demonstrate that patients with negative FFR values (defined as >0.75) did not benefit from PCI when compared with medical therapy [19]. In DEFER, 325 patients who were planned to undergo PCI underwent FFR measurement. Patients with an FFR ≥0.75 were randomized to deferral of PCI or to undergo PCI, whereas those with an FFR less than 0.75 underwent PCI as planned. There was no significant difference in the primary end point of absence of adverse cardiac events at 24 months follow-up. However, angina improved in patients with an FFR below the ischemic threshold who were treated by PCI.

The Fractional Flow Reserve versus Angiography for Guiding Percutaneous Coronary intervention (FAME) trial tested the hypothesis that PCI guided by FFR measurement in stable patients would alter lesion classification and improve health and economic outcomes [5]. After the decision to undertake PCI based on angiography, 1005 patients with a greater than 50% stenosis were randomized to FFR-guided PCI (PCI performed if the FFR was ≤0.8) or to continue with PCI, as guided by angiography alone. The composite primary outcome of death, MI or repeat revascularization at 1 year was lower in the FFR-guided group than in the angiography- guided group, and this difference was sustained during longer term follow-up at 2 years. The FFRguided strategy also reduced hospital costs. In FAME, approximately 80% of PCI-treated patients were free of angina after 1-year follow-up. However, in COURAGE, only 58% of patients treated with optimal medical therapy (OMT) alone were free of angina at 1 year.

In the Fractional Flow Reserve-Guided PCI versus Medical Therapy in Stable Coronary Disease (FAME-2) clinical trial, FFR was used to discriminate ischemiainducing lesions (FFR ≤0.80) from nonflow-limiting lesions [20]. Twelve-hundred and twenty patients with one or more angiographically severe stenoses were enrolled. In the subset of patients with lesions with an FFR ≤0.80 that were amenable to PCI (n = 888 patients), the randomized strategy involved PCI of all lesions with OMT versus OMT only without PCI. Patients with CAD associated with an FFR greater than 0.80 were not randomized and instead entered a followup registry involving OMT. On the recommendation of the Data and Safety Monitoring Committee, the trial was stopped early because of a between-group difference in the primary outcome (composite of death from any cause, MI and urgent repeat revascularization at 2 years) and that any change to this difference was improbable should further patients be randomized. The difference in the primary outcome event rates was predominantly influenced by an increase in urgent revascularization in patients randomized to OMT alone. After follow-up to 2 years, the observed between-group difference in the primary outcome was maintained [21]. Accordingly, the results of the FAME-2 study indicate that patients with symptoms and ischemia derive prognostic benefits from PCI versus medical therapy alone. The results of FAME-2 refute the findings of the COURAGE trial.

In a sub-study of COURAGE, those patients with evidence of inducible ischemia on SPECT imaging (≥10% ischemic myocardium) who were randomized to PCI had significant reductions in inducible ischemia and in the annual rate of death and MI [22]. This result led to the hypothesis that PCI may improve outcome in those with stable CAD and a moderate-to-large ischemic burden, and this hypothesis is being tested in the International Study of Comparative Health Effectiveness with Medical and Invasive Approaches (ISCHEMIA, NCT01471522) trial.

The ISCHEMIA trial tests the hypothesis that an initial invasive strategy of coronary angiography followed by PCI if feasible, in addition to OMT, will reduce the primary composite end point of cardiovascular death or nonfatal MI in patients with at least moderate ischemia on stress imaging, compared with an initial conservative strategy of OMT alone with coronary angiography reserved for failure of OMT. The invasive strategy involves FFR-guided revascularization of ‘intermediate’ coronary stenoses (50–80% severity), routine revascularization for lesions greater than 80% severity and no revascularization for lesions less than 50% severity. The trial is currently enrolling patients worldwide.

In the Synergy between percutaneous coronary intervention with Taxus and cardiac surgery (SYNTAX) study, 1800 patients with left main stem and multivessel CAD were randomized to PCI or Coronary Artery Bypass Grafting (CABG) [23]. SYNTAX demonstrated significantly increased rates of major adverse cardiac or cerebrovascular events at 12 months in those who underwent PCI (17.8 vs 12.4% for CABG), failing to meet the criterion of noninferiority for PCI. However, coronary lesions were assessed angiographically without FFR measurement. The planned Comparison of Fractional Flow Reserve-Guided Percutaneous Coronary Intervention and Coronary Artery Bypass Graft Surgery in Patients With Multivessel Coronary Artery Disease (FAME 3, NCT02100722) study will randomize 1500 patients with multivessel CAD to FFR-guided PCI or CABG in patients with the primary end point of 1-year major adverse cardiac event (MACE) rate.

Fractional flow reserve in non-ST-elevation acute coronary syndrome

Patients with high-risk non-ST-elevation acute coronary syndrome (NSTE-ACS) derive prognostic benefit from early coronary angiography and revascularization [24,25]. Treatment decisions are based on visual interpretation of the coronary angiogram, supported by all other clinical information. Noninvasive stress testing is not recommended in clinical guidelines and so is usually not available. Accordingly, ad hoc treatment decisions may have greater subjectivity in NSTE-ACS patients compared with treatment decisions made by clinicians during the elective management of patients with stable angina.

While overall, the clinical evidence base favors revascularization of obstructive culprit lesions in symptomatic patients, there is a lack of evidence to inform treatment decisions for patients with mild nonflow-limiting culprit lesions. Current practice is based on the premise that PCI in acute coronary syndrome for coronary plaque rupture may reduce the risk of recurrent events. However, in FFR-negative lesions, OMT may be sufficient. Additionally, in NSTE-ACS patients with multi-vessel disease (MVD), it is uncertain whether nonculprit coronary lesions should also undergo revascularization.

A post-hoc analysis of health outcomes in participants in the Acute Catheterization and Urgent Intervention Triage Strategy (ACUITY) clinical trial indicated that incomplete coronary revascularization was associated with a worse prognosis at 1 year [26]. ACUITY was a prospective clinical trial of 13,819 patients with moderate- and high-risk NSTE-ACS who underwent an early invasive management strategy and were randomized to different anticoagulation strategies. Quantitative coronary angiography was performed on 2954 patients who underwent PCI, and depending on the threshold of residual diameter stenosis post-PCI used, incomplete revascularization was present in 17–75% of patients with NSTE-ACS after PCI. Regardless of the diameter stenosis threshold used, incomplete revascularization was strongly associated with increased MI at 1-year and ischemia-driven unplanned revascularization, with a trend toward increased mortality. The risk of adverse outcome was related to the number of nonrevascularized lesions.

The Fractional Flow Reserve Versus Angiographically Guided Management to Optimize Outcomes in Unstable Coronary Syndromes (FAMOUS-NSTEMI, NCT01764334) clinical trial was designed to address these uncertainties [27,28]. The trial took place in six hospitals in the UK between October 2011 and April 2014. Three-hundred and fifty NSTEMI patients with ≥1 coronary stenosis ≥30% severity were randomized following coronary angiography to FFR-guided or angiography- guided intervention. FFR was measured in culprit and nonculprit lesions in all patients, but in line with the randomized strategy, FFR was disclosed in the FFRguided group but not in the angiography-guided group. In the FFR group, an FFR ≤0.80 was an indication for revascularization by PCI or CABG. The primary outcome was the proportion of patients in each group treated with medical therapy alone. One-thousand-twohundred and ninety-seven patients were screened and 853 of these patients gave informed consent, and 350 of these patients were randomized. Overall, FFR was successfully measured in 100% of the patients. There were 706 lesions and a guidewire dissection occurred in 2 (0.03%) of these lesions. The primary outcome occurred in 21.7% of patients in the FFR-guided group and 13.2% of the angiography-guided group post-randomization, and the lower adoption of revascularization was maintained through to 12 months (p = 0.054). Overall, the rate of MACE at 12 months was low (∼9%) and there were between-group differences in the MACE rates between the groups. Health outcomes and quality of life were similar at 12 months.

Fractional flow reserve in STEMI

FFR has also been proposed to guide PCI of nonculprit lesions in patients presenting with STEMI. Currently, clinical guidelines recommend that STEMI patients with MVD should have culprit-only PCI unless hemodynamically unstable [3,16]. Recently, the Randomized Trial of Preventive Angioplasty in Myocardial Infarction (PRAMI) trial has challenged this recommendation. In PRAMI, 465 STEMI patients with MVD underwent PCI of culprit lesions, and were then randomized to have no further PCI or to also have preventative PCI of nonculprit lesions greater than 50% [29]. PRAMI was stopped early due to a statistically significant decreased incidence of the primary end point of death, MI or refractory angina in the preventative PCI group, driven primarily by reduced rate of reinfarction and recurrent ischemia. The Complete versus Lesiononly Primary PCI Trial (CULPRIT) trial addressed a similar question in 296 STEMI patients with multivessel coronary disease. By 12 months, 31 (21.2%) patients in the infarct artery only group experienced a MACE event compared with 15 (10.0%) in the complete revascularization group [30]. The ongoing Complete versus Culprit-only Revascularization to Treat Multi-vessel Disease After Primary PCI for STEMI (COMPLETE, NCT01740479) trial will randomize 3900 patients within 72 hours of the index primary or rescue PCI to culprit only PCI, or PCI of the culprit lesion and additional PCI of nonculprit lesions if FFR ≤0.8. The primary outcome is a composite of cardiovascular death or MI. Given that two independent randomized trials have provided consistent results in favor of multivessel PCI at the time of primary PCI, we think the clinical guidelines committees should reconsider the current guideline recommendation against additional PCI of nonculprit lesions.

Fractional flow reserve in other circumstances

FFR may be performed following PCI to assess for improvement in flow across the treated lesion. In a multicenter registry of 750 patients, FFR was measured after angiographically successful PCI. Following PCI, an FFR greater than 0.90 was associated with a good long-term result [31].

In diffuse coronary atherosclerotic lesions, an FFR ‘pull-back’ across serial stenoses helps to discriminate which lesions are associated with a functionally relevant pressure drop, as revealed by a ‘step-up’ in the FFR as the sensor is withdrawn proximally across the lesion during hyperemia [32].

FFR measurement in angiographically equivocal left main stem stenosis is associated with favorable outcomes. In a cohort study of 213 patients with angiographically equivalent left main stem disease, the prognosis of patients who were medically managed if the FFR greater than 0.80 was similar to those with FFR ≤0.80 who underwent CABG [33].

The SYNTAX score of the complexity of multivessel CAD was modified by the FAME investigators to produce a functional SYNTAX score. Lesions were only included in the score if the FFR ≤0.8. This resulted in a reclassification of angiographically severe but functionally insignificant lesions, with 32% of patients being moved to lower risk tertiles. The functional SYNTAX score was shown to be a better discriminator than the SYNTAX score alone for MACE at 1-year follow-up [34–36]. However, it should be noted that patients in FAME had less complex CAD compared with those in the SYNTAX trial (mean SYNTAX score 14.8 vs 28.4) and left main stem disease was excluded from the FAME trial (Box 1).

Box 1. Indications for fractional flow reserve measurement.

Fractional flow reserve in comparison to resting pressure indices

The Adenosine Vasodilatation Independent Stenosis Evaluation (ADVISE) proof of concept study demonstrated that coronary resistance was constant and minimized during the wave-free period [37]. The Classification Accuracy of Pressure-Only Ratios Against Indices Using Flow Study (CLARIFY) compared iFR and FFR to another physiological measure of the severity of stenosis, the hyperemic stenosis resistance (HSR) [38]. HSR is defined as the ratio between the pressure drop across a stenosis and distal peak flow velocity at maximal hyperemia. The use of HSR in clinical practice is limited as intracoronary Doppler flow velocity measurements are not straightforward to acquire in every day practice and their reproducibility can be problematic. CLARIFY showed that iFR and FFR had equivalent agreement with classification of coronary stenosis severity when compared with HSR.

Verification of Instantaneous Wave-Free Ratio and Fractional Flow Reserve for the Assessment of Coronary Artery Stenosis Severity in Everyday Practice (VERIFY) was a prospective study of 205 patients comparing the diagnostic accuracy of iFR to FFR. VERIFY demonstrated a moderate correlation between FFR and iFR, but only a weak correlation in the diagnostic range of greatest uncertainty for decision-making (FFR = 0.6–0.9). Furthermore, evidence was provided that iFR was reduced by adenosine.

The Multicenter Core Laboratory Comparison of the Instantaneous Wave-Free Ratio and Resting Pd/Pa with Fractional Flow Reserve (RESOLVE) study was implemented in order to further assess the relationships between iFR, P_d/P_a and FFR. RESOLVE was a retrospective core laboratory-based analysis of coronary pressure recordings, and specifically iFR, whole cycle Pd/Pa and FFR in 1768 patients from 15 hospitals [12]. The results of this analysis disclosed a moderate linear correlation between iFR and Pd/Pa with FFR as the reference test with a diagnostic accuracy of 80% for both resting indices.

Subsequently, a hybrid iFR/FFR approach has been proposed. The Adenosine Vasodilator Independent Stenosis Evaluation II (ADVISE II, NCT01740895) was an observational, nonrandomized registry study of 690 patients [39]. The results of this study have been publically presented but have not yet been published. Using a hybrid approach with initial resting pressure measurement, ADVISE II suggested that stenoses with an iFR ≥0.94 may be deferred while those ≤0.85 can be treated by revascularization. Stenoses with an iFR between 0.86 and 0.93 should have further assessment with FFR to guide decision-making. ADVISE II found that iFR characterized correctly 91.6% of the stenoses in terms of hemodynamic severity outside of the prespecified ≤0.85 and ≥0.94 values, and that a hybrid iFR/FFR approach would avoid adenosine usage in 69.5% of stenosis.

The ongoing Functional Lesion Assessment of Intermediate Stenosis to Guide Revascularization (DEFINE-FLAIR, NCT02053038) study is comparing FFR-guided versus iFR-guided PCI in 2500 patients with intermediate coronary lesions and the primary outcome is major adverse cardiac events (death, MI, unplanned revascularization). DEFINE-FLAIR has a noninferiority design. In the Evaluation of iFR versus FFR in Stable Angina or Acute Coronary Syndrome (iFR SWEDEHEART, NCT02166736) patients with either stable angina or NSTE-ACS and who have an indication for a functional coronary lesion assessment at the time of invasive angiography are randomized to either iFRguided management or FFR-guided management. The primary outcome measure is death, nonfatal MI and unplanned revascularization at 12 months, and this study has a superiority design.

Invasive assessments of microvascular function in patients with angina

Coronary microvascular dysfunction may provoke typical symptoms of angina and has evidence of inducible myocardial ischemia, without obstructive epicardial CAD. It is proposed that in microvascular angina, the coronary microvasculature is unable to increase coronary blood flow at times of increased myocardial demand. Chest pain occurring in the context of nonobstructive CAD may be designated as ‘Syndrome X’ or potentially misdiagnosed as noncardiac chest pain (Table 1) [40,41].

Table 1. Clinical classification of coronary microvascular dysfunction.

Angina may occur even in patients with nonobstructive CAD. For example, in the FAME-2 trial, 13.6% of symptomatic patients initially enrolled had an FFR greater than 0.8. These patients may have been misdiagnosed with angina, but in those patients with objective evidence of ischemia, microvascular dysfunction is a possible explanation. Microvascular disease is more common in women, and is associated with an adverse prognosis [42,43].

Coronary blood flow and myocardial perfusion are regulated by arterioles (<200 μm) within the myocardium and prearterioles (<500 μm) within the epicardium, with these vessels contributing 50 and 25% respectively to total coronary vascular resistance. In the absence of significant stenosis, the epicardial arteries act as conductance vessels and offer little resistance to flow. Arterioles and precapillaries have vascular smooth muscle cells within their walls, which can influence vascular tone, and this can be affected by flow-related vasoreactivity, intraluminal pressure changes and metabolic activity. The pathophysiology of coronary microvascular disease involves a reduction in the number of microvascular arterioles, and potentially microvascular hypertrophy which may reduce the radius and lumen area of these blood vessels [44–46]. Accordingly, microvascular resistance increases according to Poiseuille’s Law. The coronary microvasculature may be assessed by invasive and noninvasive methods.

Coronary flow reserve

Traditionally, microvascular disease has been difficult to diagnose as diagnostic tests have been limited. Microvascular capillary numbers correlate inversely with symptoms and vasodilator capacity as measured by stress testing or coronary flow reserve (CFR). CFR represents the vasodilator capacity of the coronary microcirculation. It can be measured by indicator thermodilution using the coronary pressure wire, where the pressure transducer is the distal thermistor and the pressure wire shaft is the proximal thermistor. CFR is then calculated as the ratio of resting (T_rest) to hyperaemic (T_hyp) transit time as with a 3 ml bolus of room temperature saline, where CFR_thermo = T _rest / T_hyp. CFR values are normally above 4, with values less than 2 indicative of significant microvascular dysfunction in the absence of epicardial coronary stenosis. CFR is not measured in routine practice because of problems with reproducibility and uncertainties around its clinical and prognostic significance. Recently however, discordance between FFR and CFR measurements in those patients with an FFR greater than 0.8 but an abnormal CFR value, has been associated with microvascular disease and poor prognosis [47].

Pressure wire measurement of microvascular function

The pressure wire can also be used to measure indices of microvascular function, which unlike CFR is independent of coronary stenosis severity, and has acceptable reproducibility. The index of microvascular resistance (IMR) is a measurement of microcirculatory function. IMR is calculated from distal coronary pressure (P_d) multiplied by the mean transit time of a 3 ml bolus of room temperature saline during coronary hyperaemia (T_hyp) induced by intravenous adenosine (IMR = P_d x T_hyp), and as hyperemic transit time is inversely correlated with flow it provides a quantitative measure of coronary microvascular resistance [48]. An IMR less than 25 is normal, with values greater than this consistent with microvascular dysfunction [49]. IMR is not significantly affected by epicardial coronary artery stenosis and therefore allows for the specific measurement of microvascular resistance [50]. However, in a severe epicardial coronary artery stenosis, there may be an associated recruited collateral supply, and in this case the coronary wedge pressure and venous pressure must be accounted for (IMR_corr = Pa_Hyp x Tmn_Hyp x [(Pd_Hyp – Pw) / (Pa_Hyp – Pw)]) or resistance will be overestimated [51]. As IMR is measured at maximal hyperemia, it is independent of hemodynamic variations, and therefore has less variability and better repeatability than CFR (Figure 1) [52].

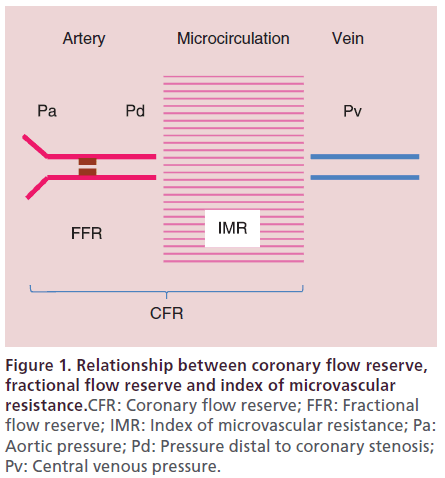

Figure 1. Relationship between coronary flow reserve, fractional flow reserve and index of microvascular resistance.CFR: Coronary flow reserve; FFR: Fractional flow reserve; IMR: Index of microvascular resistance; Pa: Aortic pressure; Pd: Pressure distal to coronary stenosis; Pv: Central venous pressure.

Another novel parameter of microvascular function is the resistive reserve ratio (RRR). This is defined as the baseline microvascular resistance (P_d x T_rest) indexed to microvascular resistance during hyperemia (IMR), with vasodilation resulting in a fall in resistance. This is a measure of the vasodilatory capacity of the coronary microcirculation in response to a pharmacological hyperemic stimulus, with an RRR greater than 1 being normal. The RRR has a negative correlation with troponin in patients presenting with STEMI, which may be explained by the severity of the microvascular dysfunction (Figure 2) [53].

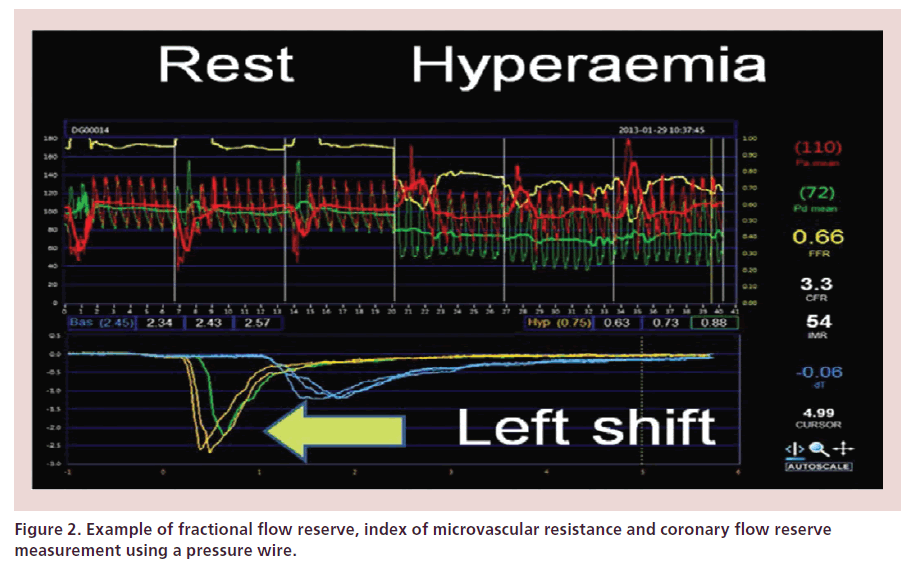

Figure 2. Example of fractional flow reserve, index of microvascular resistance and coronary flow reserve measurement using a pressure wire.

It is not known whether therapeutic reduction of IMR or treatment decisions based on IMR or RRR may confer symptomatic or prognostic benefit. Therapeutic interventions to reduce microvascular injury at the time of myocardial intervention and PCI are being investigated, including vasodilatory therapy (calcium channel blockers, sodium nitroprusside and adenosine), antiplatelet agents (glycoprotein IIb/ IIIa) and mechanical agents (thrombectomy and distal embolic protection devices). The intracoronary abciximab and aspiration thrombectomy in patients with large anterior myocardial infarction (INFUSEAMI) trial showed a modest effect on infarct size when thrombectomy and intracoronary abciximab were used in combination, but not as monotherapies [54]. These results support the rationale for new approaches to identify patients with acute coronary microvascular injury, for example by IMR measurement, which might be reversible and amenable to treatment.

IMR can be measured in patients with chronic stable angina [55], and also in those with acute MI in which it adds prognostic significance [56]. Patients with microvascular obstruction post-MI as measured on cardiac magnetic resonance have been shown to have higher IMR values after PCI than in those who did not have evidence of microvascular obstruction [57]. Microvascular resistance after primary PCI for STEMI is an independent predictor of myocardial salvage (Box 2) [58].

Box 2. Indications for the measurement of coronary flow reserve and index of microvascular resistance.

Other methods for assessing coronary microvascular function

The coronary Doppler guidewire is able to quantify coronary blood flow and thus derive CFR from the ratio of hyperemic and baseline average peak velocity. However, its use is limited by a high intrinsic variability and it is not readily available [59]. Noninvasive assessment imaging modalities have also been used to assess the coronary microvasculature.

Positron emission tomography (PET) perfusion imaging is the gold standard for noninvasive quantification of myocardial blood flow. PET uses the administration of radiolabeled tracers and dynamic measurement of tracer concentration in the myocardium at stress and rest allows for the quantification of CFR [60]. However, PET imaging is expensive and not widely available for clinical practice. Coronary vascular resistance (CVR) can be estimated by dividing arterial blood pressure by the PET-derived myocardial blood flow at hyperemia. However, in the presence of an epicardial coronary artery stenosis, CVR does not differentiate between increased CVR due to epicardial stenosis or microvascular disease [61].

Contrast-enhanced cardiac magnetic resonance (CMR) can accurately demonstrate infarct size with late gadolinium enhancement imaging. If present, a hypoenhanced core represents microvascular obstruction which can then be quantified. Oxygenationsensitive CMR is an experimental technique to assess myocardial blood flow, which exploits the intrinsic contrast of deoxygenated hemoglobin in blood which can be used to quantify myocardial blood flow [62]. The technique has been validated against FFR in patients with CAD [63].

Additionally, acetylcholine provocation testing has been used to assess the coronary microvasculature and can demonstrate vasomotor abnormalities in conditions such as Prinzmetal’s variant angina, but is not easily available in clinical practice (Figure 3) [64].

Figure 3. Calculation of coronary flow reserve, fractional flow reserve and index of microvascular resistance.CFR_thermo: Coronary flow reserve; FFR: Fractional flow reserve; IMR: Index of microvascular resistance; P_a: Aortic pressure; P_d: Pressure distal to coronary stenosis; T_hyp: Hyperaemic transit time; T_rest: Resting transit time.

Conclusion/Future perspective

The use of FFR in daily clinical practice is increasing and functional rather than anatomical revascularization is associated with improved clinical outcomes for patients in landmark trials such as DEFER, FAME and FAME-2. In the future, the ISCHEMIA and FAME 3 trials will further define its use in the management of CAD. The diagnosis and management of patients with angina who have no obstructive CAD at angiography remains a challenge. IMR and RRR may allow differentiation of patients with microvascular dysfunction from noncardiac chest pain. In the future, this may allow the targeting of potential therapeutic interventions such as vasodilator therapy and also be used to assess response to therapy.

Financial & competing interests disclosure

Professor Berry has acted as a consultant for St. Jude Medical based on a contract with the University of Glasgow. Professor Oldroyd has received consultant and speaker fees from St. Jude Medical and Volcano Corporation which manufacture pressure wires. Dr Corcoran is supported by a BHF Clinical Research Training Fellowship. The authors have no other relevant affiliations or financial involvement with any organization or entity with a financial interest in or financial conflict with the subject matter or materials discussed in the manuscript apart from those disclosed.

No writing assistance was utilized in the production of this manuscript.

Executive summary

• Theoretical basis of coronary physiology.

• Fractional flow reserve (FFR).

• Hyperemia.

• Adenosine-free coronary artery lesion assessment: resting Pd/Pa and iFR.

• FFR in stable coronary artery disease.

• FFR in non ST-elevation acute coronary syndrome.

• FFR in STEMI.

• FFR in comparison to resting pressure indices.

• Invasive assessments of microvascular function in patients with angina.

• Coronary flow reserve.

• Pressure wire measurement of microvascular function.

• Other methods for assessing coronary microvascular function.

• Future perspective.
