Decrease in lipid rich plaque during percutaneous coronary intervention: reality or artefact? An observational study using Near-Infrared Spectroscopy

Corresponding Author:

j.j.wykrzykowska
Department of Cardiology, Academic Medical Center
University of Amsterdam, Amsterdam, the Netherlands
Tel: +31205665204
E-mail: j.j.wykrzykowska@amc.nl

Submitted: November 14, 2017; Accepted: December 07, 2017 Published online: December 11, 2017

Abstract

Background: Lipid rich plaque (LRP) content has been shown to decrease after high-pressure balloon-expandable stent placement. LRPs are quantified by the lipid core burden index (LCBI) on near-infrared spectroscopy (NIRS). We aim to evaluate the changes in LRP content during sequential steps of non-urgent percutaneous coronary intervention (PCI) using low-pressures. Methods: A total of 10 patients with a LCBI>200 on pre-stenting NIRS and successful PCI with the self-apposing stent were included. Quantitative coronary angiography was used to assess luminal diameters. IVUS-NIRS was performed pre-stenting after initial pre-dilatation, post-stenting and after post-dilatation to assess the LCBI and the plaque burden to evaluate plaque modification. IVUS-NIRS is analyzed for all stented segments including proximal and distal stent edges using dedicated software. Results: Mean balloon pressure was 11.4±3.8 atm. Pre-stent reference vessel diameter (RVD) was 3.3±0.6 mm, Dmax was 3.9±0.9 mm. Mean LCBI of the stented segment was 160±96 pre-stenting, 32±49 post-stenting and 21±35 after post-dilatation (p=0.001). The plaque burden remained constant in the stented segment; 0.48±0.1 mm² pre-stenting vs. 0.51±0.1 mm² post-stenting vs. 0.48±0 mm² after final post-dilatation (p=0.14). Conclusions: Serial IVUS-NIRS demonstrated a significant decrease of LCBI in the stented segment from pre-stenting to post-stenting and after post-dilatations, while plaque burden remained unaltered throughout PCI in relatively large RVDs. This discrepancy might possible explained by the fact that NIRS might be not detecting the lipid in larger RVDs since it is only validated in small RVDs. Research including larger numbers of patients are warranted to confirm this concept.

Keywords

Plaque modification; Near-Infrared Spectroscopy; Near-Infrared Spectroscopy and Stent endothelization

Introduction

Atherosclerotic plaques containing a large lipid core, called lipid rich plaques (LRP), can be prone to imminent plaque rupture, and predictive for future cardiovascular events [1-5]. Many of those LRP are treated with stenting. There is an increased risk of procedural related complications during percutaneous coronary intervention (PCI) involving lesions containing large LRPs. These complications may include plaque shift and distal embolization of plaque debris, which could impair clinical outcomes [6]. There is emerging evidence that the reduction of the lipid content of LRPs is associated with the occurrence of distal embolization [7-10].

The combined intravascular ultrasound (IVUS) and near-infrared spectroscopy (NIRS) catheter system has been validated to identify the chemical composition of the arterial wall and to perform a morphometric assessment, including modification of LRPs throughout PCI [11]. With the introduction of the STENTYS self-apposing nitinol coronary stent, which has the property to oppose itself to the arterial wall and could theoretically be deployed with reduced procedural pressures, the risk of plaque shift during the procedure and distal embolization of plaque debris might be reduced. The nitinol stent platform of the STENTYS stent adjusts to the vessel anatomy without exerting a large outward radial force, which is seen with the implantation of balloon expandable stents.

We therefore performed an observational study to evaluate the changes in lipid content and plaque burden during PCI with the use of the self-apposing stent, using IVUS-NIRS pre-stenting, directly after stent implantation, and after final post-dilatations.

Materials and Methods

Patient population

This study was a prospective single center observational study performed in the Academic Medical Center (AMC), University of Amsterdam, the Netherlands, a high-volume, tertiary PCI center. This study evaluated the differences of lipid content and plaque burden at sequential stages during PCI with a self-expanding STENTYS stent. Elective patients were eligible if they had a de novo coronary artery stenosis and a lesion that could be treated with a single stent. The indication for the STENTYS stent, as set by the local heart team, was based on the suitability of the lesion for the STENTYS stent. The study is approved by the local ethics committee. Written informed consent was obtained, before any study-related procedure took place.

Study device

The STENTYS stent is a self-expanding stent made of a nitinol platform, a biocompatible nickel and titanium alloy. It is deployed by withdrawing a retractable sheath, thus no balloon is used to expand the stent with this conventional delivery system. Therefore, the stent is placed with a gentle outward force, although in most cases it is still necessary to post-dilate the stent after placement to ensure optimal expansion. The STENTYS stent received Conformité Européene mark in 2010 and is used in our center both in daily clinical practice as in clinical trials. The available device diameter sizes were: small suitable for vessel diameters between 2.5 and 3.0 mm, medium for vessel diameters between 3.0 and 3.5 mm, and large for vessel diameters ranging from 3.5 to 4.5 mm. The large STENTYS is capable to expand up to 6.4 mm, which provides adequate apposition even in the cases of very large vessels. The available device lengths were 17 mm, 22 mm and 27 mm. The stent is available as BMS and DES (Sirolimus-eluting). The novel balloon based delivery system was not yet available for commercial use during our study.

Study procedure

The procedure involving the STENTYS stent was performed in the setting of routine clinical care. Study procedures, including serial intracoronary IVUS-NIRS image acquisition, were performed during the PCI only within the target vessel. The combined grayscale IVUS and NIRS imaging system consists of a 3.2 French rapid exchange catheter (LipiScan, InfraReDx, Burlington, MA, USA) with pullback and rotation device for IVUS and NIRS co-registration and a motorized console. Serial motorised pullbacks were performed at a pullback speed of 0.5 mm/second. The imaging catheter was advanced at least 10 mm distally from the target lesion if possible.

Serial IVUS-NIRS pullbacks of the culprit lesion were performed at 3 moments during PCI:

1. Pre-stenting, after pre-dilatations before stent placement (pre-stent);

2. Post-stenting, directly after stent implantation (post-stent);

3. Final, after final post-dilatation (final); i.e. until residual stenosis is less than 20 percent, according to the instructions for use. If additional post-dilatations were needed, an additional IVUS-NIRS pullback was obtained after the final post-dilatation.

Angiographic success was defined as a final residual stenosis of less than 20 percent by visual estimation and TIMI 3 flow on the final angiogram. Procedural success was defined as angiographic success without in-hospital major adverse cardiac events (composite of cardiac death, any myocardial infarction or target vessel revascularization).

Quantitative coronary angiography

Quantitative coronary angiography (QCA) analyses were performed pre-stenting, post-stenting and after final balloon dilatation. Analyses were performed with dedicated software (QAngioXA version 7.3; Medis, Leiden, The Netherlands). A standardized QCA methodology was used. Matched angiographic views pre- and post-procedural were used to calculate the reference vessel diameter (RVD), minimal luminal diameter (MLD) and the maximal luminal diameter (Dmax).

Intravascular ultrasound and Near-Infrared Spectroscopy analysis

IVUS-NIRS data were analysed using dedicated offline software (QIVUS version 3.0, Medis, Leiden, The Netherlands). Derived chemograms were analysed to assess the maximum lipid core burden index (LCBI) in the following segments; 1; the proximal 5 mm of the stent edge, 2; the stented segment and 3; the distal 5 mm of the stent edge (Figure 1). Lumen and external elastic membrane (EEM) contours were drawn at each IVUS cross section from 5 mm proximal to the stent edge, at the proximal and distal stent edges, to 5 mm distal to the stent edge, and at the first and last frame of each segment. An interval of 2 mm was taken in between contours. Target segments were matched using anatomical landmarks including side branches, veins and calcification spots. Plaque and media cross-sectional area (CSA) were defined as the difference of EEM CSA minus lumen CSA (in mm²). Plaque burden was defined as plaque and media CSA divided by the EEM CSA. Each analysed sub-segment had IVUS-derived plaque burden and NIRS-derived LCBI measured to evaluate the plaque modification and lesion remodeling during and after PCI. All IVUS-NIRS pullbacks were analysed by two independent assessors (H.L., R.T) and were validated by an expert assessor (H.G.).

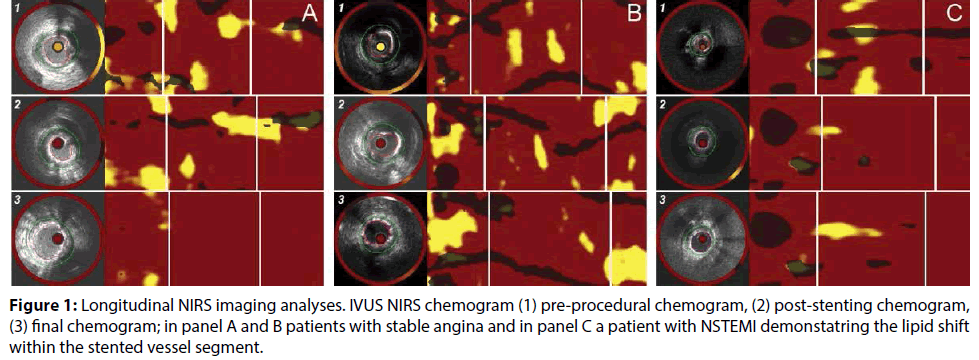

Figure 1: Longitudinal NIRS imaging analyses. IVUS NIRS chemogram (1) pre-procedural chemogram, (2) post-stenting chemogram, (3) final chemogram; in panel A and B patients with stable angina and in panel C a patient with NSTEMI demonstatring the lipid shift within the stented vessel segment.

Statistical analysis

Continuous variables were presented as mean±standard deviation (SD), categorical variables as frequencies (percentage). To compare groups, the paired Student T test or the one-way ANOVA test were used where appropriate. Correction for sphericity was performed with the Greenhouse-Geisser if necessary. All data were statistically analyzed using SPSS software package (version 23, IBM, Chicago, IL, USA).

Results

Patient and procedural characteristics

A total of 12 consecutive patients with a STENTYS indication who were eligible by the local heart team between May 2013 and July 2014 were included in this study. Two patients were excluded from the analyses, since they had a LCBI<200 on the pre-stenting IVUS-NIRS pullback. Baseline patient characteristics are summarized in Table 1. Out of 10, nine patients underwent PCI in a native coronary artery and 1 patient in a saphenous vein graft (SVG). Pre- and postdilatation was performed in all patients, with maximal pressures of 11.4±3.8 atm (pre dilatation) and 11.1±2.5 atm (post dilatation). Pre-dilatation balloon diameters were 2.9±0.2 mm, post-dilation balloon diameters were 3.9±0.4 mm. In 1 patient (10%) a Spider distal embolic protection device was used during the procedure. Pathologic analysis from the obtained material with this device revealed that the material was 3mm2 of dried thrombus, without any evidence of lipid. Angiographic and procedural success was both 100%. Procedural characteristics are summarized in Table 2.

Table 1: Baseline characteristics.

Table 2: Procedural characteristics.

Angiographic outcomes

Mean pre-stent RVD was 3.3 ± 0.6 mm. Mean MLD was 0.9±0.4 mm, 2.2±0.2 mm post-stenting and 3.0±0.4 mm after post-dilatation (p<0.001). The preprocedural maximal diameter (Dmax) was on average 3.9±0.9 mm with a maximum of 5.00 mm (Table 3).

Table 3: QCA and IVUS-NIRS outcomes.

IVUS–NIRS outcomes

The results of the IVUS- NIRS analyses are summarized in Table 3. In the stented segment, the MLA was 5.2±1.2 mm² pre-stent, 4.7±1.2 mm² poststent and 8.4±2.4 mm² final (p<0.001). LCBI within the stented segment was 160±96 pre-stent, 32±49 poststent and 21±35 final (p=0.001). The LCBI within the proximal 5 mm edge segment remained similar from pre-stent to post-stent (93±132 vs. 80±151), and decreased after final post-dilatation (65±120).

The plaque and media CSA in the stented segment remained relatively constant in the stented area (10.2±2.9 mm² pre-stenting vs. 10.7±2.5 mm² post-stenting vs. 10.5±2.5 mm² after final post-dilatation (p=0.44) (Figure 2). The plaque burden in the stented segment remained relatively constant in the stented area (0.48±0.1 pre-stenting vs. 0.51±0.1 post-stenting vs. 0.48±0.0 after final post-dilatation (p=0.14). In 1 patient we were unable to assess the proximal edge throughout the procedure due to the treatment of an ostial SVG lesion, in 1 patient the IVUS-NIRS of the proximal edge post-stenting failed due to technical error and in 1 patient the IVUS-NIRS of the distal edge pre-stenting failed due to an inability of the catheter to cross the lesion.

Discussion

With performing serial IVUS-NIRS we demonstrated a significant decrease of LCBI in the stented segment from pre-stenting to post-stenting and after post-dilatations while the plaque burden remained relatively unaltered throughout the procedure with the self-apposing stent.

The presence of large coronary LRPs in the target vessel segment could be a challenge during PCI, since it increases risk of peri-procedural complications. Modification of LRPs is stated to occur alongside coronary revascularization with the release of lipid contents and atherosclerotic debris. Plaque modification and shifting could lead to distal embolization of lipid rich particles potentially resulting in the obstruction of (small) side branches, microvascular obstruction and peri-procedural myocardial infarction [12,13]. A previous study using IVUS during PCI revealed that stent implantation not only causes plaque redistribution, plaque reduction or compression into the distal segments, but that the plaque shifts to the proximal reference segments as well [14]. Decrease of lipid content during PCI quantified by the LCBI is previously investigated in patients presenting with acute coronary syndrome as well in stable patients. Moreover, Maini et al. found a correlation of LCBI decrease and post-procedural troponin raise, and on occasion shifting of the LRP to the proximal and distal zones [15]. Our data demonstrates that, within the stented segment, the plaque burden remains relatively unchanged during the procedure (even after balloon post-dilatations) but that the LCBI decreases significantly. The LCBI decrease in the proximal 5 mm edge and in the stented area with the decrease in the distal 5 mm edge throughout the PCI without concomitant plaque burden decrease suggests that there is a shift of lipid alongside each step of coronary revascularization. Since the unaltered plaque burden suggests that the plaque content stays beyond the stent, which on its turn implies that the LCBI decrease during PCI might not necessarily be distal embolization of cholesterol or lipid particles. In one patient from our analyses, a distal protection device was used during PCI. Pathological specimen revealed only thrombus material, there was no lipid present in the distal protection device, supporting our hypothesis that the lipid content shifts. The discrepancy between plaque burden and lipid content changes can possibly be explained by significant decreased in NIRS signal (ability of NIRS to detect lipid) as a function of increasing distance to the vessel wall in larger vessels as the lipid content shifts outwards where as a function of distance the ability of NIRS to detect lipid simply decreases.

The patients in our analyses had a mean RVD of 3.3±0.6 mm which implies relatively large coronary arteries. The studied reference vessel diameter in the previous NIRS studies was not consequently reported. Maini et al. did not report the vessels RVDs. One of the autopsy validation studies of the NIRS technique reported a mean lumen diameter of 2.4 mm [16]. The in vivo validation study of the catheter based NIRS system in patients did not report any RVDs [17]. This can be explained by the fact that the IVUS NIRS technique has not yet been validated in larger RVDs and that our observations suggest a potential artefact, due to the relatively large distance from the catheter to the vessel wall and the size of the coronary artery. Larger NIRS studies with large reference vessel diameters, catheter eccentricity, and the whole vessel segment analyses are warranted to gain more insights in the lipid content modification, as well as the reliability of NIRS, during PCI of large coronary vessels.

PCI using the self-apposing stent device

High balloon pressures during PCI, which are often needed to ensure optimal stent expansion, may cause injuries to the arterial wall, lead to LRP shifts throughout the procedure or to lipid core penetration by stent struts. Iatrogenic injury of the internal elastic membrane can induce arterial inflammation which is associated with an increased neo-intimal growth and thus a larger risk of adverse events [18,19]. The use of the self-apposing stent could theoretically lead to reduced procedural pressures inserted to the coronary vessel wall, and therefore reduce the risk of potential injury. In the present study, all STENTYS stents were implanted with maximal balloon pressures of 11.4±3.8 atm. The procedural LCBI shift we observed in the stented segments might be explained by the fact that procedural manoeuvre even with relatively low pressures could impact lipid content shift. It could also support the assumption of a possible miss-registration due to decreased signal and registration of the lipids by the NIRS catheter in relatively larger RVDs since the target vessel segments were relatively large in this study.

Study Limitations

This prospective observational study is limited by its small, single-center study design with no control group. The number of patients was too small to have power, thus the results should be interpreted with caution and should be hypothesis generating. However the serial INUS-NIRS assessment could give us specific insight in the plaque and lipid shift throughout PCI. Larger cohorts are warranted to prove our assumption. Furthermore, distal protection devices were not routinely used.

Conclusion

The current serial IVUS-NIRS findings demonstrated a significant decrease of LCBI in the stented segment from pre-stenting to post-stenting and after postdilatations while plaque burden remained unaltered throughout the procedure of lesions located in large RVDs. This might be explained by a possible artefactual registration of NIRS in vessels with large RVDs. Additional research with larger numbers of IVUSNIRS analyses is warranted to confirm this concept.
