Oncologic angiogenesis imaging in the clinic: how and why?

Karen A Kurdziel^†1, Liza Lindenberg¹and Peter L Choyke¹

Molecular Imaging Program/Center for Cancer research, National Cancer Institute/National Institutes of Health, Bethesda, MD, USA

*Corresponding Author:

Karen A Kurdziel
Molecular Imaging Program/Center for Cancer research
National Cancer Institute/National Institutes of Health Bethesda
MD, USA
Tel.: +1 301 443 0622
Fax: +1 301 480 1434
E-mail: karen.kurdziel@nih.gov

Abstract

The ability to control the growth of new blood vessels would be an extraordinary therapeutic tool for many disease processes. Too often, the promises of discoveries in the basic science arena fail to translate to clinical success. While several anti-angiogenic therapeutics are now US FDA approved, the envisioned clinical benefits have yet to be seen. The ability to clinically noninvasively image angiogenesis would potentially be used to identify patients who may benefit from anti-angiogenic treatments, prognostication/ risk stratification and therapy monitoring. This article reviews the current and future prospects of implementing angiogenesis imaging in the clinic.

Keywords

[¹⁸F]AH111585; [¹⁸F]fluciclitide; [¹⁸F]galacto-RGD; angiogenesis; bevacizumab; cardiac disease; dynamic contrast-enhanced magnetic resonance; integrins; magnetic resonance; microbubbles; molecular imaging ; nuclear medicine; oncology; targeted imaging; VEGF

Angiogenic switch

The hypothesis that tumor growth is dependent on the development of new blood vessels and that the tumor cells themselves direct this process was proposed by Folkman in 1971 [1]. As tumors increase in size, they begin to exceed the approximate 1 mm oxygen diffusion limit, whereupon they must increase their blood supply in order to continue growing. Mechanisms by which they accomplish this includes angiogenesis, the process of developing new blood vessels from existing blood vessels. Tumors unable to undergo angiogenesis either die or arrest growth and remain in a dormant state that is typically less than 2 mm in diameter, resulting in large reservoirs of occult disease that potentially can activate under certain conditions, such as inhibition of the immune system or provocation by excess growth factors [1,2]. Angiogenesis plays a critical role in a tumor’s continued growth. The proliferative rate of many dormant tumors is equal to that of angiogenic tumors; however, the apoptosis rate is significantly decreased in the latter. Thus, dormant tumors are poised for progression. While increased cellular proliferation and decreased apoptosis are necessary for tumor growth, they are not sufficient for sustained tumor growth. The evolution of an avascular ‘dormant’ tumor to an aggressive metastatic cancer is believed to occur after an ‘angiogenic switch’ has been thrown, giving the tumor the resources to obtain oxygen and nutrients through increased blood supply [3]. It is projected that only approximately 1 in 600 ‘dormant’ tumors switch to an angiogenic phenotype [4]. While the underlying trigger for the switch is not yet known and may differ according to tumor type, the process is directly regulated by oncogenes, tumor suppressor genes and indirectly controlled by the microenvironment (i.e., hypoxia, glucose concentration and pH). Udagawa et al. demonstrated that after transducing non-angiogenic osteogenic sarcoma cells with the Ras oncogene, the expression of the pro-angiogenic mediator, VEGF, increased by 38% and that of the anti-angiogenic factor thrombospondin-1 decreased by 50% [5]. In a mouse model, animals with Ras transduction lived only a few weeks, while those without the Ras oncogene lived for approximately 1 year. In general, activation of oncogenes often results in increased endothelial cell (EC) proliferation, migration and rate of tumor cell apoptosis.

Indirect control of angiogenesis by the microenvironment is illustrated by the the ability of a low oxygen environment to activate hypoxiainducible factor (HIF)-1a, which, in turn, activates pathways that among other things, control angiogenesisis. HIF-1a is a transcription factor that upregulates VEGF and other pro-angiogenic genes. HIF-1a is degraded in the presence of oxygen, thus regulating angiogenesis under normal circumstances. If HIF-1a is allowed to accumulate in the cell (either by increased production or decreased degradation), the cell will transcribe pro-angiogenic genes, resulting in angiogenesis.

The players

players Often lost in the discussion of angiogenesis is that it is a normal physiologic process and becomes pathologic only when it is no longer regulated. The biological process of angiogenesis is complex and involves activation of inflammatory cells (macrophages, monocytes and lymphocytes), the migration of endothelial or progenitor cells and the proliferation of existing ECs [6]. Angiogenesis plays a role in wound healing, the menstrual cycle and pregnancy. There are a multitude of regulatory molecules and pathways involved in angiogenesis, making therapeutic manipulation of the process challenging. These regulatory molecules may arise from within the extracellular matrix (ECM) or be produced by tumor, stromal or immune cells. For the most part, normal mature tissue is at a steady state: pro-angiogenic effectors balance anti-angiogenic effectors, resulting in no net increase in vascularity. Physiologically, under appropriate circumstances (tissue growth damage or repair), the balance is tipped resulting in angiogenesis.

While a complete description of the molecular pathways that play a role in angiogenesis is beyond the scope of this article (interested readers are referred to an excellent text on angiogenesis edited by Marmé and Fusenig [7]), selected well studied endogenous pro-angiogenic molecules are discussed briefly here and include: VEGF, FGF and α_vb₃ integrin.

VEGF

VEGF is a 45‑kD homodimeric glycoprotein that is secreted by tumor cells, and released and activated by heparinase, plasmin, urokinase and plasminogen. Its interaction with VEGF receptor-A on ECs results in the mobilization of circulating endothelial precursors, decreased apoptosis, increased vascular permeability and actin reorganization. Upregulated by the oncogene Ras, VEGF is secreted from tumors, and binds to VEGF receptor-1 (VEGFR‑1) and -2 on ECs and bone marrow-derived cells. Therapeutic modulation of the VEGF system has been shown to potentiate chemotherapy and radiation effects.

FGF

FGF is released by heparinase, associated with the ECM, and protected from degradation by binding to heparin sulfate proteoglycans. FGF induces cell proliferation, migration and production of proteases in ECs. Interactions with FGF receptors and heparin-like glycosaminoglycans result in FGF receptor dimerization or oligomerization and activation of the receptor tyrosine kinase. This activates multiple transduction pathways including sustained activation of Ras [8]. One of the first angiogenesis inhibitors used in humans was low-dose IFN-a. A patient with progressive hemangiomatosis of both lungs leading to intractable hemoptysis was successfully treated with very-low-dose IFN-a [9]. At these low doses (below that needed for a cytotoxic or immunosuppressive effect), angiogenesis was inhibited by suppression of FGF [10].

α_vb₃ integrins

Integrins are a family of receptors within the ECM that span the cellular membrane, passing signals from the ECM to the cytoplasm and vice versa, essentially ‘integrating’ the intracellular cytoskeleton with the ECM. These adhesion molecules activate signaling pathways, which organize the cytoskeleton and increase cell proliferation. α_vb₃ integrins can be associated with proliferating ECs and malignant cells, but are not found in mature blood vessels. α_vb₃ integrin receptors contain a peptide binding pocket specific for the RGD (Arg-Gly-Asp) peptide sequence. RGD peptide binding can initiate a multitude of signaling pathways including those controlling gene expression, tissue development, inflammation, angiogenesis, tumor cell growth and metastasis.

High α_vb₃ expression has been demonstrated in melanomas, glioblastomas and certain sarcomas, with lower expression levels in breast cancers and renal cell carcinomas [11]. α_vb₃ integrin levels have been correlated with disease progression in several malignancies including: melanoma, glioblastoma, ovarian cancer and breast cancer [12,13]. It has also been shown to mediate adhesive reactions of platelets and acts as a receptor for fibrinogen, von Willebrand factor and fibronectin [14].

Why image?

As the treatment of cancer moves towards the molecular control of cancer using targeted therapies, conventional anatomic imaging may prove insufficient. The current reliance on size criteria alone in determining whether a drug is effective can take many months. Moreover, determining activity within a tumor that is stable in size is impossible when using size criteria alone. Antiangiogenic therapeutics targeting various steps in the angiogenesis pathway have entered the clinic [15] (i.e., bevacizumab, an antibody which neutralizes VEGF [16], sunitinib, which blocks VEGF receptors on vessels [17], and cilengitide, which blocks binding to integrins [18]). As the molecular changes occurring with anti-angiogenic treatment are not expected to result in rapid tumor volume loss, an imaging biomarker of therapeutic response could be of great value. Angiogenic inhibitors appear to have a biphasic (U-shaped) dose–response curve: while their effect initially increases with dose, administration of higher doses actually results in a decreased response [19]. Optimal dose and dosing schedules could be defined if one had an accurate marker for therapeutic response. Additionally, many angiogenic inhibitors appear to negatively regulate angiogenesis for a while before alternate molecular pathways develop to promote angiogenesis [20]. The point at which tumors begin to become resistant to angiogenic inhibition would be a useful marker for understanding the degree and duration of angiogenic suppression.

Angiogenesis is the key to a tumor’s independence. While it entails a complicated interaction of numerous effectors and pathways, control of this process may enable us to establish ‘permanent’ tumor dormancy. A priori identification of the predominant signaling pathways could have prognostic value and may guide therapeutic selection. The ability to monitor the process in vivo can help direct such interventions.

How to image

There are several clinical imaging tools available, which can indirectly image angiogenesis by evaluating blood flow and perfusion. A growing number of imaging agents are being used to directly image angiogenesis by aiming at specific targets.

Indirect imaging of angiogenesis

There are several methods of indirectly monitoring angiogenesis using conventional imaging, notably, contrast-enhanced ultrasound (US), CT and MRI.

Routinely performed contrast-enhanced MRI and CT allow for the subjective differentiation between areas that are ‘well perfused’ and those with ‘low or no’ perfusion. The contrast agents used in both modalities highlight arterial blood flow initially, rapidly followed by venous and blood pool and extravascular diffusion. Since these agents are low in molecular weight, they readily leak from angiogenic vessels making it difficult to distinguish between intravascular containment and extravascular leakage. For typical clinical applications, ‘snapshot’ images from arterial and venous phases are sufficient for diagnostic purposes, however, to attempt to quantify perfusion and vessel permeability, dynamic contrast-enhanced (DCE) methods are used. Dynamic contrast imaging collects sequential images over a period of time and can be used to monitor perfusion and permeability in select clinical trials.

Dynamic contrast-enhanced MR

With the evolution of faster MRI sequences, rapid sequential imaging following a controlled intravenous bolus injection of a low-molecularweight gadolinium diethyltriamine pentaacetic acid (Gd-DTPA) based contrast agent is now feasible and widely available [21]. This dynamic imaging captures the entire time course of contrast enhancement in an area of interest. By drawing a focal region of interest (ROI) and applying it to each image in the time series, a time activity curve (TAC), from which parameters representing the kinetics of the blood flow and permeability, can be extracted. As Gd-DTPA-based contrast agents do not enter the intracellular space to a significant extent, the resultant TAC can be fit to a two compartment kinetic model, representing transit to and from the vasculature and extravascular extracellular spaces. For DCE MRI, the rate constant describing the transit of contrast agent from the blood into the extravascular extracellular space is often referred to as Ktrans and the rate constant describing the return of tracer (from the extracellular extravascular space) to vasculature is termed kep. Parametric maps can be created resulting in images where the image intensities can be colorized and made proportional to the magnitude of the rate constants, Ktransor kep [22]. It can be seen from Figure 1 that high K^trans (rapid influx into extravascular tumor space) and k_ep (the rate of tumor efflux) is associated with tumor phenotype. While modeling can be performed assuming the contrast entrance into the blood is instantaneous, a more realistic model incorporates the rate at which blood initially enters the system, using the vascular input function (estimated from an ROI within a homogenous portion of a vessel in the field of view). In theory, the use of an arterial input function results in more accurate parameter estimates [23]; however inclusion of an arterial input function also risks the introduction of new errors from flow-based artifacts in the targeted vessel [24]. Initial single center clinical trials using DCE MRI are promising, with visible changes in parameters between baseline and early post-therapy scans (Figure 2) [25]. The clinical relevance of these findings has yet to be validated particularly in light of a recent study showing higher morbidity in patients receiving anti-angiogenic therapy (compared with chemotherapy alone) [26,27].

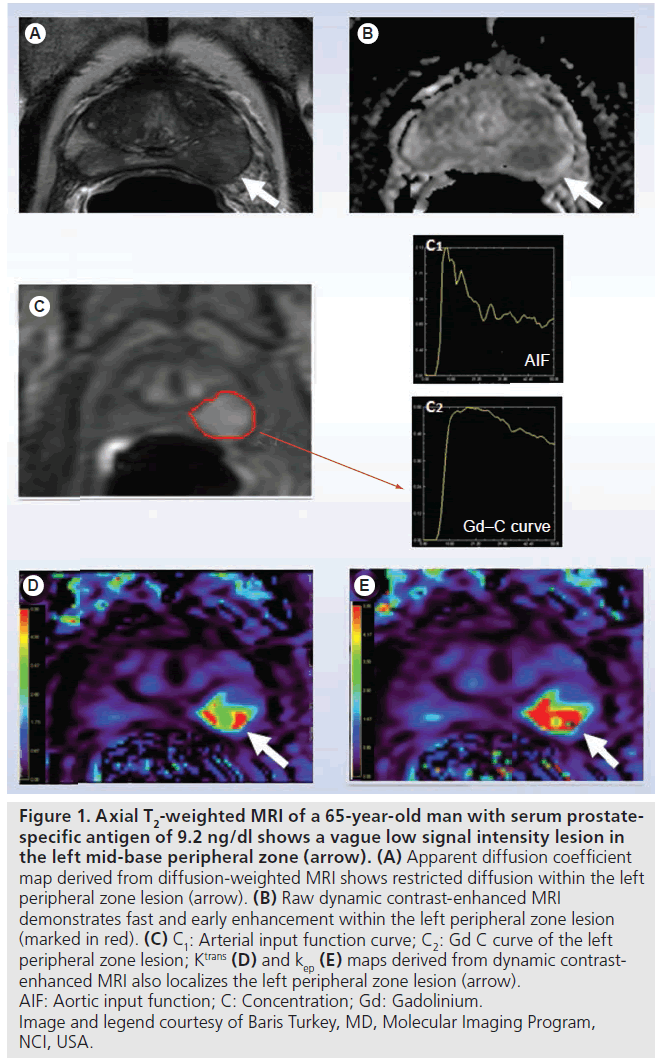

Figure 1. Axial T2-weighted MRI of a 65-year-old man with serum prostatespecific antigen of 9.2 ng/dl shows a vague low signal intensity lesion in the left mid-base peripheral zone (arrow). (A) Apparent diffusion coefficient map derived from diffusion-weighted MRI shows restricted diffusion within the left peripheral zone lesion (arrow). (B) Raw dynamic contrast-enhanced MRI demonstrates fast and early enhancement within the left peripheral zone lesion (marked in red). (C) C1: Arterial input function curve; C2: Gd C curve of the left peripheral zone lesion; Ktrans (D) and kep (E) maps derived from dynamic contrastenhanced MRI also localizes the left peripheral zone lesion (arrow). AIF: Aortic input function; C: Concentration; Gd: Gadolinium. Image and legend courtesy of Baris Turkey, MD, Molecular Imaging Program, NCI, USA.

Dynamic contrast-enhanced MRI provides the potential for semiquantitative assessment; however, the methodology first needs to be standardized if it is to be widely used and results are to be compared across centers [28,29]. Given the multiple vendors of MRI imaging equipment, the vast range of available scanning sequences and coils, and wide variability in compliance, standardization is not a simple process. One simplified method, which avoids the pitfalls of two compartment modeling, involves normalizing the magnetic resonance signal intensity of the postcontrast images to baseline, thus establishing a relationship between signal intensity and contrast agent concentration (i.e., each study serves as its own control); however, the results are still semiquantitative and the changes in signal intensity are not linear over the range of concentrations of gadolinium or background T₁ values, and therefore require further calibration.

There is significant ongoing effort to validate and standardize DCE MRI. This work requires meticulous quality control and assurance, determination of parameter reproducibility, standardized imaging procedures and image analysis, and, most importantly, correlation with an existing biomarker (i.e., proof that the process being measured actually represents the process of interest). Such requirements have made accruement to trials with DCE MRI difficult and cast doubt on the ability to actually recruit patients and conduct multi-institutional trials with rigid quality control, which hitherto has been lacking in radiology departments.

Routinely used low-molecular-weight Gd-DTPA-based imaging agents cannot be used to measure vascular volume since they easily leave the vasculature, diffusing into extravascular spaces. Complexing gadolinium with albumin, dextran, liposomes and dendrimers, for example, results in macromolecular contrast agents that remain confined to the vasculature at least for the period of the scanning, or enter the extravascular space only when the vessels are highly permeable; such agents may provide a method for measuring vascular volume in the future.

Ultrasound

Ultrasound relies on acoustic reflections in soft tissue to construct an anatomic image. Contrastenhanced US is an appealing imaging modality for several reasons. US scanning equipment offers portability and low cost and data acquisition is rapid and in real time. Additionally, sound waves lack ionizing radiation, which is advantageous for patient safety over repeated examinations.

Doppler US can measure the velocity of blood, indicate f low direction and estimate blood flow [30]. Color Doppler can delineate tortuous vascular anatomy and malformations, and help assess anti-angiogenic effects of therapy on tumors. Unfortunately, this technique is limited by variations in flow velocity from the cardiac cycle and slow capillary flow, which if less than 1 mm/s cannot be detected. Power Doppler is an improved feature that increases sensitivity at low flow rates and is not angle dependent. Blood volume flow can be calculated by this method, but there is no standardization [31]. Key features of power Doppler include better edge definition and depiction of flow continuity [32]. The vascularity index is a quantitative parameter developed to assess in vivo tumor angiogenesis and is the ratio of the number of coloured pixels in the ROI divided by the total number of pixels in that ROI. Chen et al. demonstrated that the vascularity index was associated with tumor differentiation, lymph node metastasis and patient survival in colon cancer in one study and with lymph node metastasis, combined VEGF and PIGF expression status and patient survival in another study of gastric cancer [33,34]. Resistance to blood flow in the microcirculation can be determined with Doppler in tumors, but mixed high and low flow rates are often found secondary to characteristics of the tumor and compensatory response of surrounding tissue. Certain tumors, such as choriocarcinoma, demonstrate a consistent low resistance index that can be used to monitor effects of chemotherapy [35]. Power Doppler still has significant limitations. The resolution obtained with high frequencies restricts evaluation to only superficial tissue. Convoluted small vessel distribution is also difficult to distinguish. Vessels less than 100 μm in diameter and blood flow rates less than 1 mm/s (e.g., in the capillaries) are still challenging to evaluate and can be complicated by respiratory or cardiac motion artifact [36]. The combination of contrast- enhanced US and power Doppler methods has been used to increase microvessel detection. In a preclinical mouse study with human breast cancer xenografts, contrast-enhanced Doppler US correlated with angiogenic activity evaluated by immunohistochemistry in vessels measuring approximately 40 μm in diameter [37]. Advanced Doppler systems, including contrast-enhanced harmonic and pulse inversion imaging, may enhance small vessel flow imaging.

Contrast agents refine these signals through backscatter or reflection of sound characterized by their chemical shape and size. Microscopic lipososomes, nanoparticle emulsions and microbubbles are examples of the contrast agents that have been used [38]. When gas-containing microbubbles are injected, they are confined to the vascular space owing to their size. The insonating pressure wave creates reverberations on the microbubble that are transmitted back to the receiver at harmonic frequencies that uniquely identify the microbubble as the source of the returning sound waves. This results in a very high target:background ratio. Microbubble sizes range from 1 to 4 μm (the largest imaging agent in use in humans) and the basic design is an inert gas-filled core, typically perflurocarbon, and an outer shell of albumin, lipid or biopolymers. With low US transmission frequencies, the nonlinear oscillation of microbubbles produces an acoustic signal that separates it from the background tissue. A high contrast:tissue background ratio results in highly sensitive detection (even one microbubble can be identified) and quantification of these signals is becoming possible. Microbubbles are administered intravenously and, once degraded, the encapsulated gas is exchanged through the lungs. They can be purposely destroyed by high-power US to facilitate repeated measurements in a single field of view. To improve their stability and residence times in circulation, polymers such as polyethylene glycol (PEG) can be attached to the microbubble surface. Microbubbles are similar in size to red blood cells and are confined intravascularly making them uniquely suited to assess blood flow and also target ECs.

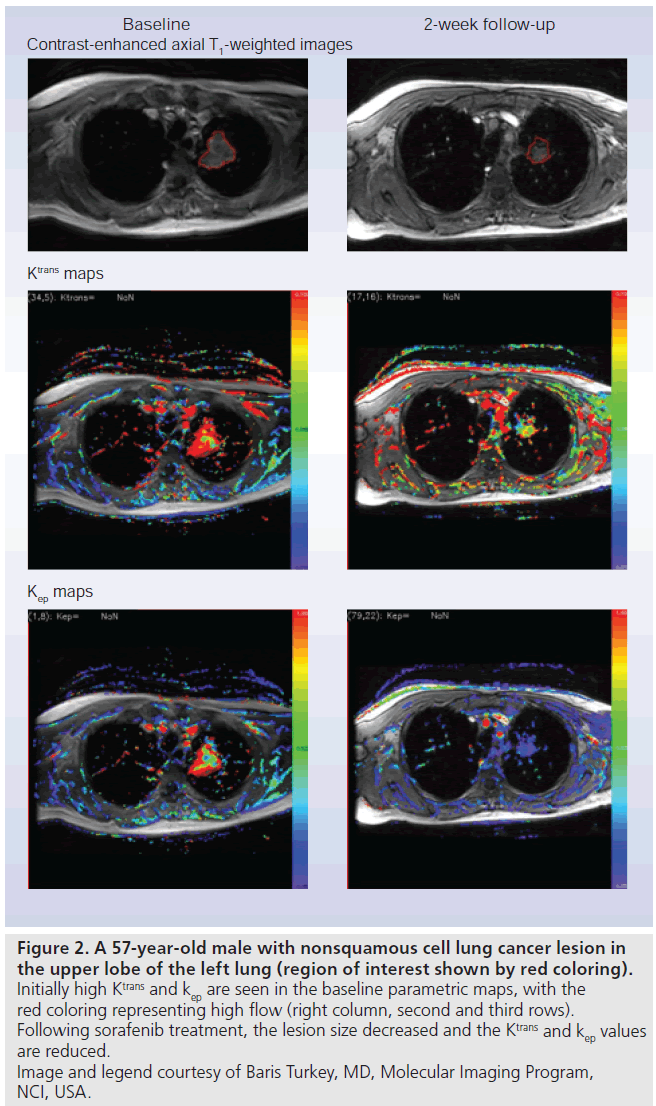

Figure 2.A 57-year-old male with nonsquamous cell lung cancer lesion in the upper lobe of the left lung (region of interest shown by red coloring). Initially high K^trans and k_ep are seen in the baseline parametric maps, with the red coloring representing high flow (right column, second and third rows). Following sorafenib treatment, the lesion size decreased and the Ktrans and kep values are reduced. Image and legend courtesy of Baris Turkey, MD, Molecular Imaging Program, NCI, USA.

Published literature is scarce on indirect angiogenesis imaging in human studies assessing anti-angiogenic therapy with US. Lassau et al. showed that microbubble activity corresponds to response in metastatic renal cell carcinoma patients treated with an anti-angiogenic medication [39]. Larger studies are necessary for further validation.

Microbubbles can also be labeled with molecular ligands such as antibodies or peptide binding ligands. Because the microbubble is already so large, the addition of antibodies or peptides to the surface of the microbubble does not change the pharmacokinetics, as it might with smaller carrier molecules. Molecular-targeted microbubbles for angiogenesis have focused on targeting integrins and growth factor receptors with promising applications in detection and monitoring therapy response.

Nuclear medicine/PET

The main advantage of radionuclide imaging is its potential for high specificity. Limitations of nuclear imaging include long acquisition times, the increased potential for motion artifacts and low spatial resolution. Future improvements in camera technology may decrease these limitations. The radiation doses are similar and generally less than that of diagnostic CT.

Another imaging method that could be applied to angiogenesis is quantitative blood flow imaging using ¹⁵O-water PET [40]. The major limitation of its use is the availability of the imaging agent (t_1/2 = approximately 2 min, requiring an onsite cyclotron) and subsequent complicated imaging procedure. Since ¹⁵O water is completely diffusible (i.e., freely transfers between the extra- and intracellular spaces), the TACs derived from the dynamic images (analogous to DCE MRI) can be fit to a two compartmental model. For brain imaging, the initial uptake of ¹⁵O-water (k₁, analogous to K^trans in DCE MRI) is used to measure flow, while for tumor and cardiac imaging, blood flow is modeled using the efflux (k₂, analogous to kep in DCE MRI) portion of the curve and parametric images of k₁ and k₂, can be made. Since the activity measured in tissues directly corresponds to the injected activity, quantitative blood flow measurements can be readily made. Like all PET imaging studies, the resolution of such studies is inferior to CT and MRI and that, combined with its limited availability and complexity, has led to limited usage.

Blood volume can be measured with 11C-COor C¹⁵O-PET. CO binds tightly to red blood cells, which, in turn, are distributed uniformly throughout the vasculature. The volume fraction of blood in tissue can be determined by dividing the concentration within the ROI by the concentration in the blood. The measurement of CO uptake on the PET images, combined with the hematocrit ratio (estimated to be 0.85 by Grubb et al. [41] permits quantitative calculation of the blood volume. Again, limited by the short halflife of the ¹¹C positron emitter (¹¹C ~20 min) these studies need to be performed near a cyclotron. An additional procedural hurdle is that the tracer is administered as a gas (CO), requiring special room ventilation owing to the potential toxicities of CO.

Myocardial perfusion imaging has been extensively developed to study coronary artery disease in the heart. In theory, such methods can be applied to angiogenesis imaging. Routinely used cardiac perfusion agents include ²⁰¹Tl chloride, ^99mTc-tetrofosmin, sestamibi (SPECT) or ⁸²Rb (less commonly ¹³N ammonia) PET/CT. Each of these have been used in tumor imaging with limited success due to their extraction from the blood and subsequent specific and nonspecific cellular interactions, resulting in variations in background activity and distributions not distinctly representative of tumor perfusion. If an intravascular radiolabeled imaging agent that does not significantly accumulate in the lungs or reticuloendothelial system were available, nuclear tumor perfusion/blood volume imaging may be more widely used.

Direct imaging of angiogenesis

As indirect measures of blood flow and permeability are not specific markers for angiogenesis and may represent other processes (i.e., infection, inflammation or vascular dilatation), significant efforts are being put forth to create imaging agents that specifically image angiogenesis.

Targeted radionuclide imaging

As mentioned previously, the RGD binding pocket of integrin is important for downstream activation of angiogenesis. Angiogenic vessels are rich in integrins and, as a consequence, can be targets for molecular imaging. Multiple imaging agents based on the RGD amino acid sequence motif have been successfully developed and tested in animal models of angiogenesis [42–45] and several RGD-binding PET agents have entered human clinical trials.

One such promising RGD-binding PET agent is the glycosylated cyclic pentapeptide ¹⁸F-galacto-RGD, which was developed by conjugating the RGD containing cyclic pentapeptide cyclo(Arg-Gly-Asp-dPhe-Val) with galactose-based sugar amino acids. PET imaging allows specific imaging of α_vb₃ expression and the uptake of ¹⁸F-galacto-RGD correlates with α_vb₃ expression in tumor xenografts as well as in patients. Successful human α_vb₃ integrin imaging with ¹⁸F-galacto-RGD has been demonstrated in invasive ductal breast cancer and squamous cell head and neck cancer, sarcoma, melanoma and glioblastoma. The resultant standardized uptake value (SUV) and tumor:background ratios correlated with integrin immunohistochemistry and α_vb₃ expression, and was shown to be high and variable in primary tumors as well as in metastases [11,44,46–50]. ¹⁸F-galacto-RGD has also been used to provide evidence of myocardial angiogenesis following a transmural infarction in humans [51]. While initial results are promising, its synthesis is long and complicated, potentially slowing its clinical translation.

¹⁸F-fluciclatide (18F AH111585), a synthetic cyclic peptide containing the RGD tripeptide which preferentially binds with high affinity to α_vb₃ integrins is also under clinical investigation. Early studies have shown it to be safe and ‘imageable’ in patients with breast cancer, with favorable dosimetry [52].

An ongoing proof-of-concept study aimed at correlating ¹⁸F-fluciclatide uptake with α_vb₃ integrin levels in tumors is underway. Preliminary data show variable intratumoral distributions. Figure 3A shows a melanoma with diffuse uptake (SUVmax 6.4), while Figure 3B shows a metastatic melanoma focus in a different patient in which only the rim of the tumor shows uptake (SUV_max of 3.0).

Figure 3.Images of α_vb₃ integrin PET/CT imaging performed after injection of 18F-fluciclatide in two patients with melanoma. (A) Diffuse high uptake (SUVmax 6.4) in the large soft tissue metastasis can be seen (cross hairs). (B) The metastatic melanoma focus shows a central photon deficit and mild (SUVmax of 3.0) 18F-fluciclatide uptake around the periphery.

Several other integrin-targeted agents are under development with attempts to improve specificity and biodistribution to increase the tumor:background ratio. While still in the preclinical stages, ⁶⁴Cu–1,4,7,10-tetraazacylododecane-N,N´,N´´,N´´´-tetraacetic acid (DOTA)–knottin (⁶⁴Cu-DOTA-knottin 2.5F) is a peptide engineered for integrin binding. Binding the RGD receptor with high affinity (low nmol/l range), its low background activity may enable improved detection of lung tumors. Nielsen et al. showed intense uptake in lung metastases in a transgenic mouse model Figure 4, with tumor:background ratios ranging from 3.3 to 8.3, enabling the detection of metastastic lesions as small as 2.5 mm [53].

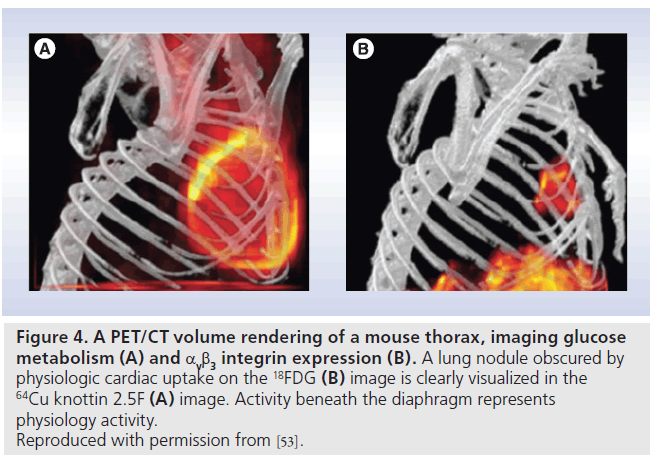

Figure 4.A PET/CT volume rendering of a mouse thorax, imaging glucose metabolism (A) and α_vb₃ integrin expression (B). A lung nodule obscured by physiologic cardiac uptake on the 18FDG (B) image is clearly visualized in the 64Cu knottin 2.5F (A) image. Activity beneath the diaphragm represents physiology activity. Reproduced with permission from [53].

Extensive work on the development of radiolabeled imaging agents targeting VEGF is also underway. Nuclear imaging using antibodies to VEGF has been successfully employed in preclinical models using both PET and SPECT radionuclides, including ^99mTc, ¹¹¹In, ⁸⁹Zr, ⁶⁴Cu and ⁸⁶Y/⁹⁰Y. Preclinical SPECT imaging with ¹¹¹In VEGF₁₂₁ and VEGF165 radiotracers was reported by Wagner et al. [54]. VEGF₁₂₁ has also been labeled with ⁶⁴Cu (t1/2 = 12.7 h), a positron emitter yielding increased sensitivity and potentially quantitative monitoring of angiogenesis and VEGFR expression. Micro-PET imaging with ⁶⁴Cu-DOTA-VEGF₁₂₁ exhibited nanomolar receptor-binding affinity. In a small U87MG glioblastoma tumor with high VEGFR-2 expression, there was intense, rapid and specific uptake [55]. Willmann et al. monitored the biological response to hindlimb ischemia with ⁶⁴Cu-DOTA-VEGF₁₂₁ in mice and showed the angiogenic response to be greater in exercised than nonexercised mice [56]. The kinetics of ⁶⁴Cu-DOTA-VEGF₁₂₁ uptake in a rat model of myocardial infarction was imaged by Rodriguez et al. [57]. By radiolabeling the anti-angiogenic drug bevacizumab with ⁸⁹Zr and ¹¹¹In, Nagengast et al. imaged VEGF expression in mouse models [58]. More recently, the same group radiolabeled the anti-angiogenic drug ranibizimab with a monoclonal antibody fragment derived from the same parent murine anti-VEGF antibody and showed that sunitinib decreases ⁸⁹Zr-ranibizumab tumor uptake, most notably in the tumor center, with a marked rebound after discontinuation of the anti-angiogenic therapeutic agent [59].

An exciting area of research involves the combination of an imaging agent with a therapeutic agent, creating a so-called ‘theranostic agent’. This would allow visualization of the target, quantification of the drug delivered to the target and therapeutic monitoring using just a single agent. The potential for a combined imaging and radiotherapy agent was reported by Nayak et al. [60] who developed the radioimmunoconjugate ⁸⁶Y-CHX-A’-DTPA-bevacizumab, which could serve as a surrogate imaging marker for therapeutic ⁹⁰Y CHX-A’-DTPA-bevacizumab. Biodegradable integrin-targeting dendritic PET nanoprobes have been developed for the noninvasive imaging of angiogenesis. Preliminary data showed them to have a 50-fold enhanced binding affinity when compared with monovalent RDG peptides. The biodegradable nature of these particles should reduce potential toxicities by promoting renal excretion, thereby reducing exposure time in the body. Its modular nature allows control of its blood circulation time and route of excretion (both highly dependent on molecule size) due to the ability to alter dendritic branching and polyethylene glycol length, and to “switch out” the targeting moieties (i.e., target VEGF or other entity instead of integrins). It also permits attachment of a variety of radiohalogens (e.g., iodine, bromine and astatine) used in both imaging and therapy. This nanoprobe could potentially have implications in both therapy and imaging (Figure 5) [61].

Targeted US

Targeted microbubbles for US, based on monoclonal antibodies and ligands such as the snake venom disintegrin, echistatin, which contains the RDG sequence, have also been used to detect integrins. Murine studies targeting tumor angiogenesis with these contrast agents have yielded strong US signals specific to new vascular growth [62,63]. Knottin is a peptide that binds to α_vb₃ integrins and offers improved peptide and microbubble stability. Willmann et al. demonstrated increased US signals in mouse models of human ovarian adenocarcinoma with knottin microbubbles, which correlated strongly to tumor vasculature [64].

Dual or multitargeted microbubbles have two or more ligands specific for different angiogenic targets with the expectation that this will increase the probability for binding to new proliferative vessels. This was recently tested in human ovarian cancer xenografts in mice using microbubbles labeled with antibodies to VEGFR2 and integrin α_vb₃. Increased tumor vessel attachment was noted in the dual-targeted microbubble compared with single-targeted microbubbles [65].

VEGF-specific targeting moieties can also be integrated into US contrast agents. Targeted US contrast agents can be prepared by attaching a molecular complex to a microbubble through noncovalent bonds. These attachments can be on the PEG arm, which can also serve as a molecular spacer. Ligands can also be directly integrated into the microbubble shell. The biotin–streptavidin link (noncovalent) has been the most common route of attachment in animal studies, but its clinical usefulness is limited by its potential immunogenicity. Maleimide reactive groups can be added to the microbubble surface and conjugated to thiol ligands by thioether bonding, thus reducing the immunogenic response. Anderson et al. linked scVEGF to microbubbles through thioether covalent bonds. Targeting the VEGF receptor (VEGFR)-2, mouse models of colon adenocarcinoma demonstrated affinity for tumor vasculature on US [66]. Myrset et al. also utilized the thiol-maleimide couplings to attach peptides to microbubbles targeting the angiogenic marker, VEGFR2, and the inflammatory marker, E-selectin, with successful results [67]. Exploring other chemical couplings of ligands such as amine (NH2)/amide attachments are additional options in developing targeted microbubbles that minimize the risk of immunogenicity [68]. Such efforts will facilitate translation into the clinical setting.

Microbubble studies examining response to anti-angiogenic therapy have shown significant changes that precede visible anatomic changes in the tumor. Kinase insert domain receptor is a binding lipopeptide analogous to VEGFR-2 that can be directly inserted into the microbubble shell. Pysz et al. used murine models of human colon cancer treated with anti-VEGF therapy and found decreases in US signal when compared with baseline exams using kinase insert donain receptor-targeted microbubbles. Findings were evident in mice treated with anti-angiogenic therapy as early as 24 h after the start of treatment and decreased by approximately 46% [65]. There are no reports, at the time of writing, of using molecular angiogenesis-targeted imaging agents for US in patients.

Research has also focused on US contrast agents as vehicles for drug delivery. Drugs can be complexed to the lipid shell and selectively released when the contrast agent is destroyed by US signals at specific sites. Drug-loaded contrast agents have been developed for a variety of applications but the majority has focused on chemotherapeutic delivery for treatment of tumor angiogenesis. Several animal and in vitro studies have shown decreased systemic toxicity and increased potency at targeted locations. Specific to angiogenesis treatment, animal models have shown marked attenuation of tumor growth after delivery of chemotherapy by US contrast agents [38].

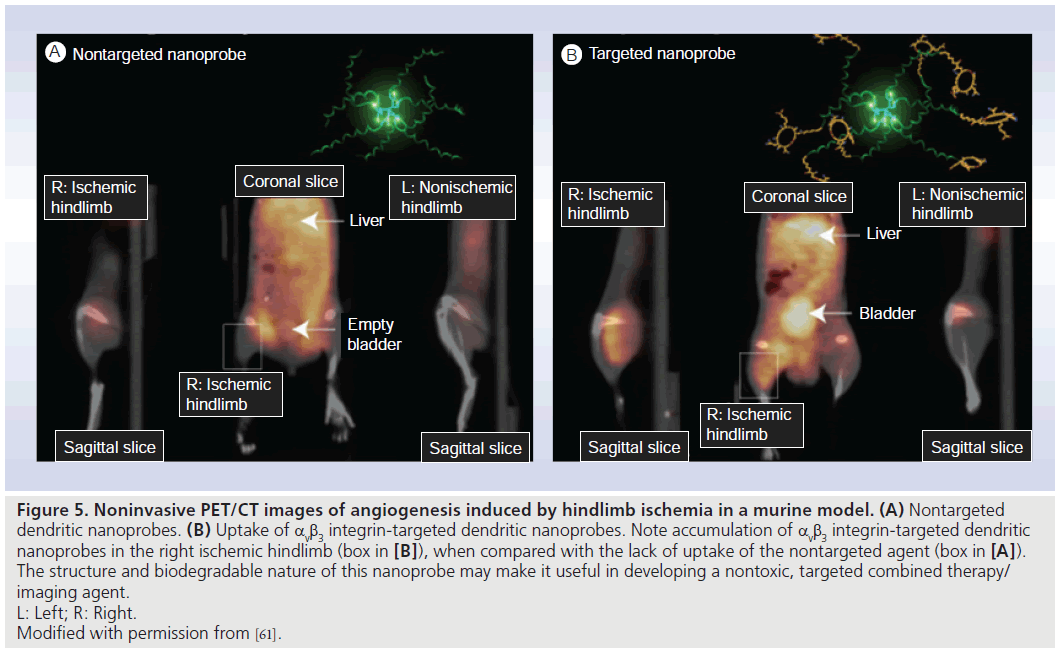

Figure 5.Noninvasive PET/CT images of angiogenesis induced by hindlimb ischemia in a murine model. (A) Nontargeted dendritic nanoprobes. (B) Uptake of α_vb₃ integrin-targeted dendritic nanoprobes. Note accumulation of α_vb₃ integrin-targeted dendritic nanoprobes in the right ischemic hindlimb (box in [B]), when compared with the lack of uptake of the nontargeted agent (box in [A]). The structure and biodegradable nature of this nanoprobe may make it useful in developing a nontoxic, targeted combined therapy/ imaging agent. L: Left; R: Right. Modified with permission from [61].

Targeted MRI

Attempts to measure angiogenesis directly with MRI have been met with limited success. Several imaging agents have been evaluated in preclinical models only. An approach using liposomes (diameter of 300–350 nm) containing Gd3+ and targeted using the α_vb₃ specific antibody LM609 showed promise but has not been developed further [43].

A major drawback to using MRI in this setting is its limited sensitivity (detected at millimolar levels) and it is technically challenging to label nanoparticles with large amounts of Gadolinium. In the future, this limited sensitivity of MRI might be overcome by signal amplification strategies that generate higher target to background contrast [69]. Hyperpolarized ¹³C MRI also holds promise for much greater sensitivity, although the hyperpolarization process is difficult to generate and suffers from a short (2–3 min) half-life.

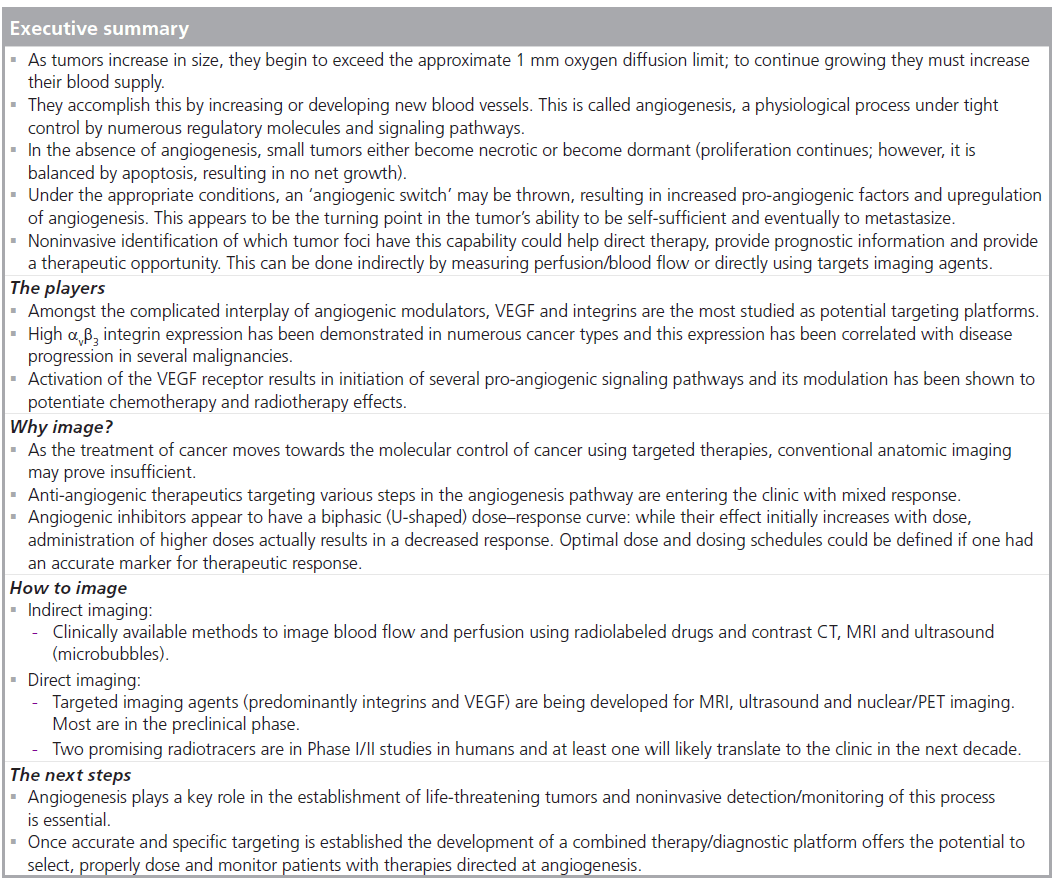

Future perspective

Angiogenesis is an integral component of tumor development and tissue remodeling. The ability to noninvasively detect and monitor this process has numerous potential clinical applications. A successful targeted imaging agent could potentially be used to identify patients who may benefit from anti-angiogenic therapies, to monitor antiangiogenic therapy, to identify sites of high angiogenesis for focal therapies or to provide prognostic information. There are numerous clinical options for indirect measurement of angiogenesis, by measuring blood flow and perfusion as surrogates, but these parameters can be affected by processes other than angiogenesis, notably inflammation. For this reason, a more targeted approach is preferable.

As the process of angiogenesis involves a complicated dynamic interplay among numerous modulators, information about the system determined at a single time point is not likely to be representative of the entire state of the angiogenic pathway. Targeted molecular imaging, using optical imaging agents in particular, has already shown itself to be a boon to the research efforts to better understand the process. Unfortunately, owing to significant light scattering, widespread clinical application is not practical. Attempts to develop similar targeted MRI agents have been made, with the hopes of maintaining directed specificity while improving the spatial resolution. There has been little success in the clinical translation of such imaging agents, likely attributable to the intrinsically low sensitivity of MRI imaging (i.e., relatively large amounts of Gadolinium are required to obtain an adequate signal, making the chemistry and safety of these agents challenging).

The preclinical work using targeted US microbubbles is also promising. The ability to release a therapy payload ‘on demand’ suggests the possibility of a combined imaging and therapeutic paradigm. Labeling microbubbles with specific targeted molecules may result in an imaging agent platform similar to that in nuclear medicine and PET; however, compared with radionuclide imaging, US imaging requires a higher dose and further safety testing will be necessary for regulatory approval.

Radionuclide imaging alone is able to bridge the translational gap for targeted imaging, providing dynamic high sensitivity targeted information, albeit with low spatial resolution, in both the preclinical and clinical arenas. Several angiogenesis-targeted PET imaging agents are already in clinical trials with promising results. While more safety and efficacy studies are needed, it is likely that an integrin-targeted PET imaging agent will be translated to the clinic in the next decade.

While the clinical implication of modulating angiogenesis is currently uncertain, given the major role it plays in various disease states, the ability to monitor angiogenesis noninvasively over time will be a useful medical tool in the near future. Theranostic platforms currently in development offer the potential to select, properly dose and monitor patients with therapies directed at angiogenesis.

Financial & competing interests disclosure

While no monetary benefits have been received, the Molecular Imaging Program does have research agreements with Phillips Medical and GE Healthcare, and imaging agents have been provided free of charge from the latter. The authors have no other relevant affiliations or financial involvement with any organization or entity with a financial interest in or financial conflict with the subject matter or materials discussed in the manuscript apart from those disclosed.

No writing assistance was utilized in the production of this manuscript.
