Relationship between electrophysiology and Ca2+ signalling in Goldfish intact hearts

Corresponding Author:

Ariel L Escobar
Department of Bioengineering,
School of Engineering,
University of California,
Merced,
CA,
USA,
E-mail: aescobar4@ucmerced.edu

Received date: August 19, 2021 Accepted date: September 02, 2021 Published date: September 09, 2021

Abstract

Fish have become an increasingly popular model to study cardiovascular physiology given its numerous advantages. However, many studies centred on the cardiac properties of Zebrafish (Denio rerio) are generally done in isolated cardiomyocytes and present limitations. This review evaluates the systolic Ca²⁺ signalling (Ca²⁺-T) parameters and the electrophysiological behaviour of intact Goldfish hearts, in order to establish a new fish model to study cardiovascular physiology. In this review we will discuss how Ca²⁺ signalling and the electrophysiological performance of Goldfish intact hearts were evaluated in comparison with Zebrafish using Local Field Fluorescence Microscopy (LFFM) and sharp microelectrode recordings. The hearts were perfused through the bulbus arteriosus with the Ca²⁺ indicator Rhod-2, among other solutions. Ventricular Action Potentials (APs) and Ca²⁺-T recorded from the Goldfish were considerably lengthier than those of the Zebrafish. Analysis of the Goldfish AP showed the half duration (APD50) of the ventricular AP heart was significantly longer (370.38 ± 8.8 ms) than the Zebrafish (83.9 ± 9.4 ms). Moreover, the half duration of the Ca²⁺-T was also much longer for Goldfish (266.9 ± 7.9 ms) than the Zebrafish (99.1 ± 2.7 ms). Blocking the L-type Ca²⁺ channel with Nifedipine in the Goldfish shortened both the APs and Ca²⁺-T. The AP Duration (APD) in the Goldfish hearts shortened with increasing temperature, and not surprisingly, Ryanodine and Thapsigargin perfusion significantly reduced the amplitude of epicardial Ca²⁺-T and prolonged the AP duration, indicating Ca²⁺ dependent inactivation of the L-type Ca²⁺ channels. These data suggest the electrophysiological properties and Ca²⁺-T in intact Goldfish hearts are more similar to those in the human heart endocardium, especially when compared with other fish models such as the Zebrafish. The central objective of this review is to discuss the strengths of the Goldfish as a new model to study cardiac signalling, and ultimately human cardiac pathology.

Intact Goldfish heart • Excitation-contraction coupling • Electrophysiology • Pulsed LFFM

Introduction

The Zebrafish (Danio rerio) has become an increasingly popular model for examining heart function due to its availability, cost, and the ease at which transgenic models can be developed [1-4]. Although the Zebrafish model is extremely useful in many fields of review, the model presents several limitations [5] when used to study cardiac electrophysiology.

In this review, we examine the properties of the Goldfish (Carassius auratus) heart, and discuss its usefulness as an alternative experimental model to study the mechanism of excitation-contraction coupling. Goldfish hearts present many of the same advantages as the Zebrafish heart, such as its availability, the ease at which transgenic models can be developed using CRISPR/Cas9 [6], as well as being used in electrophysiological and Ca²⁺ signalling experiments [7,8]. However, there are some unique advantages in the Goldfish model that are only present when compared to the Zebrafish model (Figures 1A-1J).

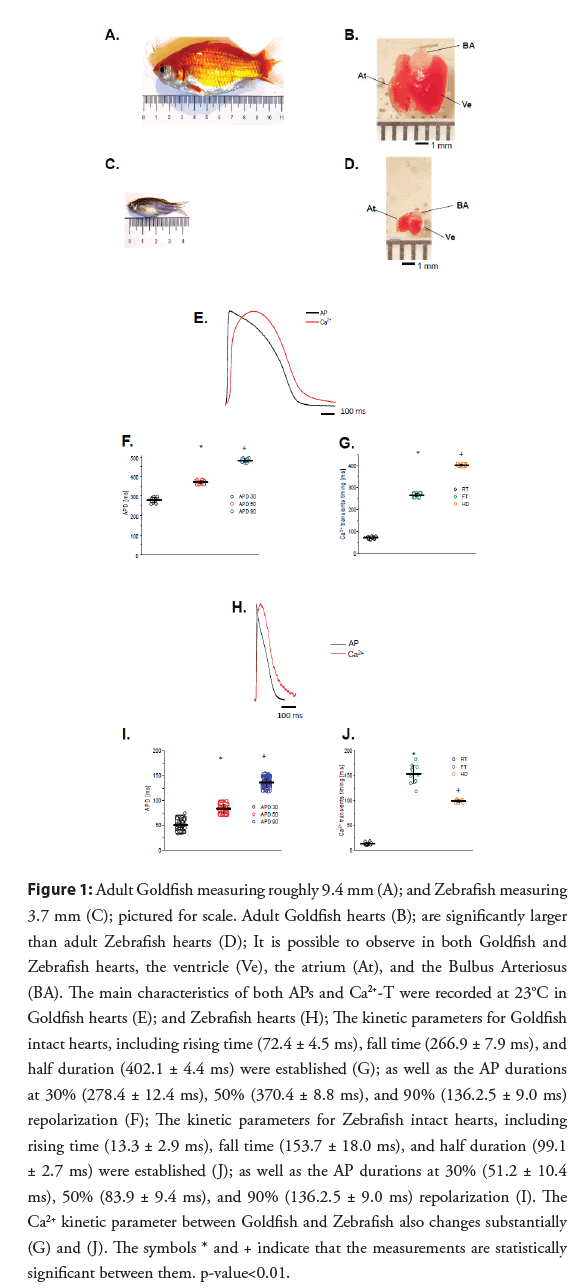

Figure 1: Adult Goldfish measuring roughly 9.4 mm (A); and Zebrafish measuring 3.7 mm (C); pictured for scale. Adult Goldfish hearts (B); are significantly larger than adult Zebrafish hearts (D); It is possible to observe in both Goldfish and Zebrafish hearts, the ventricle (Ve), the atrium (At), and the Bulbus Arteriosus (BA). The main characteristics of both APs and Ca²⁺-T were recorded at 23°C in Goldfish hearts (E); and Zebrafish hearts (H); The kinetic parameters for Goldfish intact hearts, including rising time (72.4 ± 4.5 ms), fall time (266.9 ± 7.9 ms), and half duration (402.1 ± 4.4 ms) were established (G); as well as the AP durations at 30% (278.4 ± 12.4 ms), 50% (370.4 ± 8.8 ms), and 90% (136.2.5 ± 9.0 ms) repolarization (F); The kinetic parameters for Zebrafish intact hearts, including rising time (13.3 ± 2.9 ms), fall time (153.7 ± 18.0 ms), and half duration (99.1 ± 2.7 ms) were established (J); as well as the AP durations at 30% (51.2 ± 10.4 ms), 50% (83.9 ± 9.4 ms), and 90% (136.2.5 ± 9.0 ms) repolarization (I). The Ca²⁺ kinetic parameter between Goldfish and Zebrafish also changes substantially (G) and (J). The symbols * and + indicate that the measurements are statistically significant between them. p-value<0.01.

The most notable difference between the two models is the substantially larger body and heart size of the Goldfish in comparison to the Zebrafish. Interestingly, the Goldfish heart rate [9] (109 beats/min) is closer to the heart rate in larger mammals (i.e. Dogs, Humans) when compared to the Zebrafish [5] (162- 169 beats/min). Furthermore, Goldfish Ca²⁺-T (Figures 1E and 1G) kinetic parameters (i.e., Rise Time (RT), Fall Time (FT), and Half Duration (HD)) are much slower than their counterparts in the Zebrafish (Figures 1H and 1J). The Goldfish Ca²⁺-T present similar kinetic characteristics within canine hearts both in isolated myocytes [10] and at the intact heart level [11]. APs recorded from the Goldfish model are also significantly longer than that of Zebrafish. Kinetically, the APD90 in Goldfish is very similar to ones recorded in the endocardial ventricular layer of dog hearts [12] at similar temperatures (25°C). Although the Goldfish epicardial APs do not present a “spike and dome” behaviour [13,14], the epicardial APs in Goldfish do present a waveform strikingly similar to ones recorded from the dog endocardial layer. Finally, the Goldfish APD at 90% repolarization (APD90) is very similar to the human QT segment at similar temperatures [15].

To evaluate the main mechanisms of the Goldfish heart we evaluated APs and Ca²⁺-T. Many vertebrates permeate Ca²⁺ into their myocytes through L-Type Ca²⁺ channels. More specifically, the role of the L-type Ca²⁺ currents in the excitability and contractility, the contribution of SR Ca²⁺ release to Ca²⁺-T, and the repolarization of the AP were examined in this review. These goals were tackled using a combination of LFFM [14-16] and microelectrode intracellular recordings [10,11,16]. The results presented here show the Goldfish to have epicardial Action Potentials (APs) duration and kinetics compatible with endocardial APs of larger mammals such as humans or dogs. The influx of Ca²⁺ through L- type Ca²⁺ channels not only define the duration of AP but may also be the key trigger for Ca²⁺ release from the SR. In addition, Goldfish hearts have a similar AP temperature [17,18] and heart rate dependency [19,20] to that of larger mammals.

Like in other vertebrates, the fish heart needs to increase its heart rate to cope with environmental stress conditions and to handle the metabolic demands of its skeletal muscle. As poikilotherm vertebrates, the internal temperature of a fish is dependent on the ambient water temperature, which can modify both the kinetics of APs and Ca²⁺-T. In general, contractility has a larger temperature dependency than excitability, possibly due to the temperature dependency of the ATP hydrolysis needed to pump Ca²⁺ back into the SR.

Although there are numerous advantages to any fish model, it  is important to clarify there are significant structural differences between mammals and fish. Perhaps the most important features may be the two-chambered heart and the absence of the T-tubule system in the fish ventricular myocyte [12,13,21]. Independently of this structural distinction, in this review, we found an encouraging fact, the presence of a significant fraction of Ca²⁺ release from the SR

Literature Review

Materials and methods

• Heart preparation: Adult Goldfish or Zebrafish (Figures 1A and 1C) were anesthetized via immersion in ice-cold water containing tricaine methane-sulfonate (0.16 mg/ml) solution for 2-5 min. Tanks varying in volume were utilized respective to fish size (Figure 1). Experiments at UC Merced were performed under UC Merced animal facilities are Association for Assessment and Accreditation of Laboratory Animal Care accredited and Office of Laboratory Animal Welfare certified and fully comply with all regulations, policies, and standards that protect animal welfare. Animal use in our studies fully complied with the National Institutes of Health Guide for the Care and Use of Laboratory Animals.

Goldfish hearts (Figure 1B) were dissected, extracted, cannulated onto a gauge 27 needle, and perfused in a Langendorff system at a rate of 60 μL/min driven by gravity. Multiple solutions including the Ringer were perfused through the bulbus arteriosus with the aid of a self-designed μ-manifold. Zebrafish hearts (Figure 1D) were dissected, cannulated onto a gauge 32 needle, and perfused in a Langendorff system at a rate of 10 μL/min driven by gravity through the bulbus arteriosus. The solutions contained NaCl 137 mM, KCl 5.4 mM, CaCl₂ 1.8 mM, MgCl₂ 0.5 mM, HEPES 10 mM, and glucose 5.5 mM. The Ca²⁺ dye Rhod-2 AM was perfused into the heart with a Harvard pump. The temperature of the heart was controlled with the aid of a Peltier unit positioned in the bottom of the recording chamber and measured with a linearized semiconductor temperature sensor.

Experimental setup

• Optical measurements: Ca²⁺-T were recorded with Local Field Fluorescence Microscopy (LFFM technique) [17-19]. This technique can assess physiological parameters by exciting exogenous probes present in the tissue and detecting the light emitted by these fluorescent indicators. The excitation (532 nm Yag laser) and emitted light propagated through a multimode fiber optic (200 μm diameter, 0.67 NA). The emitted light then travelled back through the multimode fiber, dichroic mirrors, and filters (610 nm), and was focused on an avalanche photodiode (Perkin Elmer, USA). The signal is digitized by an A/D converter (NI, USA) and acquired by a PC.

• Electrophysiological measurements: Epicardial electrical recordings of the APs were obtained using sharp glass  microelectrodes filled with 3 M KCl, connected to a  high  input impedance differential amplifier (WPI, USA). Glass microelectrodes were fabricated with a 10-20 MΩ resistance [20,22]. Data were recorded with an acquisition system Digidata 1440A (Molecular Devices, Sunnyvale, CA) using pClamp 10 software. Fluorescence and membrane potential were always recorded from the ventricular epicardium. The hearts were paced with the aid of two acupuncture needles placed in the apex of the ventricle. The larger bulbus arteriosus of the Goldfish allows the heart to be cannulated with a needle gage 27, while the Zebrafish requires a gage 32-34. This minor difference in needle gage leads to significantly larger fluxes, which can lead to an increased perfusion rate of drugs during an experiment.

• Statistical analysis: In whole heart experiments, there are two main causes of variance. The stochastic nature of APs and Ca²⁺-T and differences between different animals. The time constant for activation (τ_on) and the time constant for the relaxation (τ_off) of the Ca²⁺-T were calculated as

τ_on=RT/2.2 and τ_ofoff=FT/2.2

Furthermore, the gain of Ca²⁺ induced Ca²⁺ release was calculated as The Ca²⁺-T recorded in the presence of Ryanodine and Thapsigargin mostly represents the influx across Ca²⁺ across the plasma membrane. Thus, it is possible to calculate the gain of the Ca²⁺ induced Ca²⁺ release as

Gain_CICR=Amplitude_control of Ca²⁺Amplitude_Ry-Th of Ca²⁺

The data are presented as multiple measurements (n, dot cloud) recorded in different hearts (N) with the mean ± SEM (solid lines). Statistical significance was tested using a two-sample Kolmogorov- Smirnov test (OriginPro 2020). The difference was significant if the p-value was <0.01.

Results

• General properties of Goldfish and Zebrafish excitability and contractility: One of the more noticeable advantages of the Goldfish model may be the size of the model. Goldfish are 3 times longer and 2.7 times wider than Zebrafish (Figures 1A and 1C). Due to their larger body size, Goldfish consequently have a significantly larger ventricle than Zebrafish, being 3.7 times longer and 3 times wider (Figures 1B and 1D). As a result of larger ventricle dimensions, the volume of the ventricle is 34 times larger in the Goldfish than the Zebrafish. Another physiological advantage of the Goldfish heart is the presence of a longer ventricular action potential duration (Figures 1E and 1F) and the Ca²⁺ transients at room temperature (23°C; Figures 1E and 1G) when compared to the Zebrafish (Figures 1H-1J). These findings suggest the Goldfish heart may be better related to the human heart than the Zebrafish.

Figure 1E shows the main characteristics of both APs and Ca²⁺-T recorded from the Goldfish ventricle. The AP parameters were 3 times longer for Goldfish (Figure 1F) compared to the Zebrafish (Figure 1I).

Several kinetic parameters such as RT, FT, and HD were also evaluated for the Ca²⁺-T in both Goldfish (Figure 1G) and Zebrafish (Figure 1J). The kinetic properties of Goldfish Ca²⁺-T were significantly slower (RT=72.4 ± 4.5 ms, FT=266.9 ± 7.9 ms, HD=402.1 ± 4.4 ms; n=40 measurements) than the ones recorded in Zebrafish hearts (Figure 1J) (RT=13.3 ± 2.9 ms, FT=153.7 ± 18.0 ms, and HD=99.1 ± 2.7 ms; n=11 measurements).

• Role of L-type Ca²⁺ currents in the excitability and contractility of Goldfish hearts: Experiments presented in Figure 2, address the contribution of the L-type Ca²⁺ current to the ventricular AP kinetics and the amplitude of Ca²⁺-T. Partially blocking the L-type Ca²⁺ current with 10 μM Nifedipine (Figure 2A) significantly reduced all parameters that define the duration of the epicardial AP (APD30 reduced from 278.4 ± 12.4 ms to 210.31 ± 12.8.4 ms, APD50 reduced from 370.3 ± 8.8 ms to 283.6 ± 8.0 ms, and APD90 reduced from 481.5 ± 9.5 ms to 389.5 ± 16.9 ms; (Figures 2B-2D), respectively; n=25 measurements) indicating the L-type Ca²⁺ is partially responsible for the duration of phase 2 during the AP.

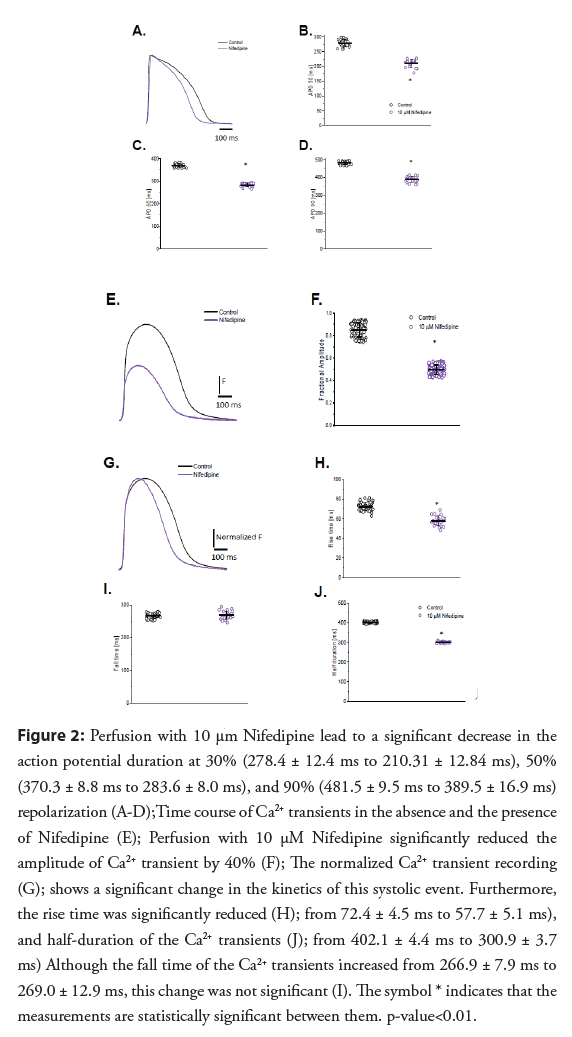

Figure 2: Perfusion with 10 μm Nifedipine lead to a significant decrease in the action potential duration at 30% (278.4 ± 12.4 ms to 210.31 ± 12.84 ms), 50% (370.3 ± 8.8 ms to 283.6 ± 8.0 ms), and 90% (481.5 ± 9.5 ms to 389.5 ± 16.9 ms) repolarization (A-D);Time course of Ca²⁺ transients in the absence and the presence of Nifedipine (E); Perfusion with 10 μM Nifedipine significantly reduced the amplitude of Ca²⁺ transient by 40% (F); The normalized Ca²⁺ transient recording (G); shows a significant change in the kinetics of this systolic event. Furthermore, the rise time was significantly reduced (H); from 72.4 ± 4.5 ms to 57.7 ± 5.1 ms), and half-duration of the Ca²⁺ transients (J); from 402.1 ± 4.4 ms to 300.9 ± 3.7 ms) Although the fall time of the Ca²⁺ transients increased from 266.9 ± 7.9 ms to 269.0 ± 12.9 ms, this change was not significant (I). The symbol * indicates that the measurements are statistically significant between them. p-value<0.01.

Furthermore, Nifedipine significantly reduced the amplitude of Ca²⁺-T by 40% (from 0.84 ± 0.06, n=84 measurements to 0.49 ± 0.04, n=106 measurements; (Figures 2E and 2F)). To compare the kinetics of the Ca²⁺-T before and after 10 μM Nifedipine perfusion, the control and experimental traces were normalized to their maximum amplitude (Figure 2G). Interestingly, there was a significant reduction in the RT and HD of the Ca²⁺ transients (RT; from 72.4 ± 4.5 ms, n=40 measurements to 57.7 ± 5.1 ms, n=22 measurements; (Figures 2H and 2J), respectively), suggesting a shorter APD30 reduced the duration of the Ca²⁺ influx through L-type Ca²⁺ channels. However, the FT of the Ca²⁺ transients did not change significantly after Nifedipine perfusion (Figure 2I; from 266.9 ± 7.9 ms; n=40 measurements to 269.0 ± 12.9 ms; n=22 measurements), even after the normalization of the Ca²⁺-T before and after Nifedipine (Figures 2G and 2I).

• Temperature dependency of APs and Ca²⁺-T in Goldfish hearts: Figure 3A shows a 5°C increase in the temperature significantly shortened the APD30 (Figure 3B; 212.4 ± 12.3 ms to 164.3 ± 9.9 ms.), APD50 (Figure 3C; from 320.1 ± 9.5 ms to 244.1 ± 11.5 ms), and APD90 (Figure 3D; from 443.5 ± 10.2 ms to 356.6 ± 5.2.5 ms; n=87 measurements) in the Goldfish. Interestingly, this is opposite to what has been previously observed in the mice model and is more similar to what has previously been observed in larger mammals.

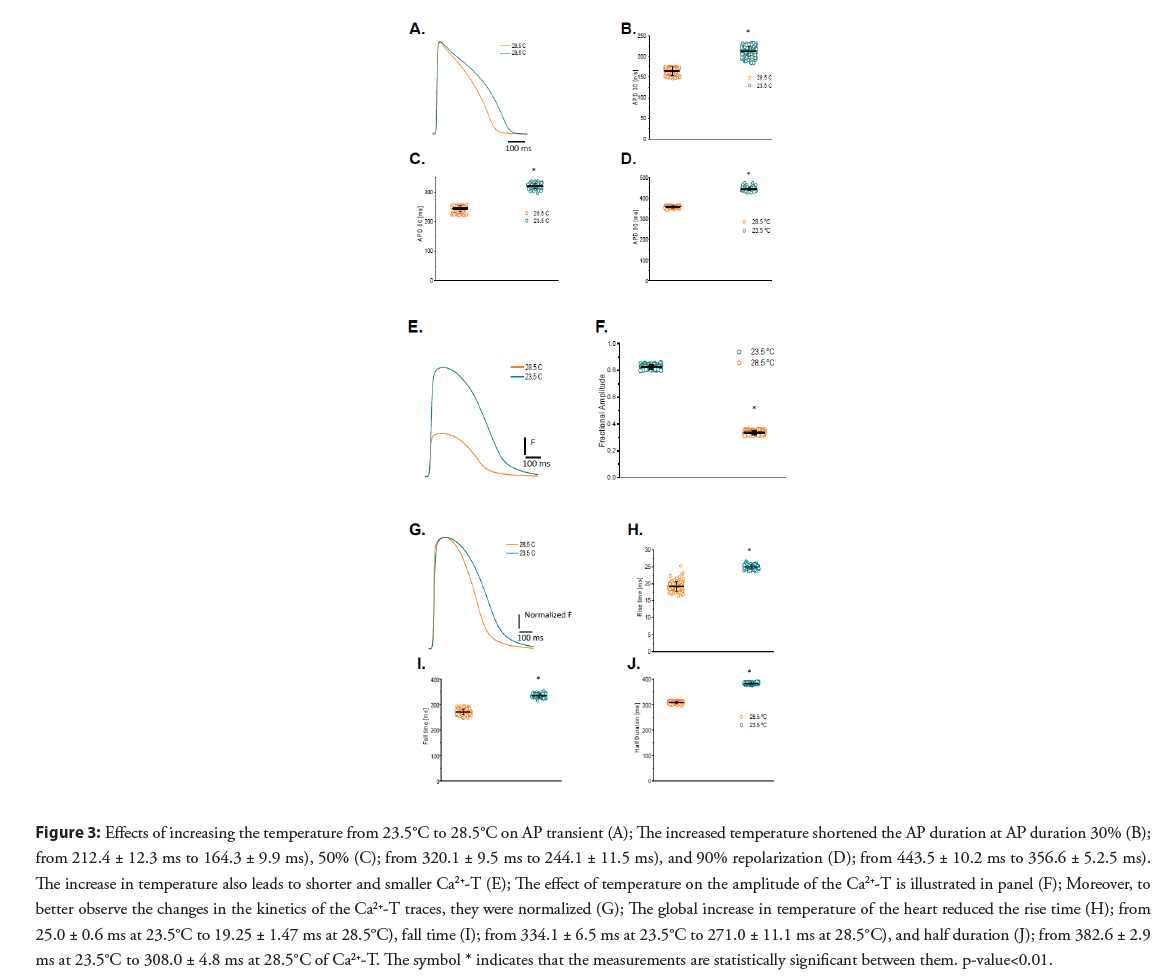

Figure 3: Effects of increasing the temperature from 23.5°C to 28.5°C on AP transient (A); The increased temperature shortened the AP duration at AP duration 30% (B); from 212.4 ± 12.3 ms to 164.3 ± 9.9 ms), 50% (C); from 320.1 ± 9.5 ms to 244.1 ± 11.5 ms), and 90% repolarization (D); from 443.5 ± 10.2 ms to 356.6 ± 5.2.5 ms). The increase in temperature also leads to shorter and smaller Ca²⁺-T (E); The effect of temperature on the amplitude of the Ca²⁺-T is illustrated in panel (F); Moreover, to better observe the changes in the kinetics of the Ca²⁺-T traces, they were normalized (G); The global increase in temperature of the heart reduced the rise time (H); from 25.0 ± 0.6 ms at 23.5°C to 19.25 ± 1.47 ms at 28.5°C), fall time (I); from 334.1 ± 6.5 ms at 23.5°C to 271.0 ± 11.1 ms at 28.5°C), and half duration (J); from 382.6 ± 2.9 ms at 23.5°C to 308.0 ± 4.8 ms at 28.5°C of Ca²⁺-T. The symbol * indicates that the measurements are statistically significant between them. p-value<0.01.

The temperature dependency of the Ca²⁺-T is presented in Figure 3E. The Goldfish Ca²⁺- T became smaller (from 0.82 ± 0.01, n=107 measurements to 0.33 ± 0.01, n=107 measurements; Figures 3E and 3F) and faster (Figures 3E and 3G) after increasing the Goldfish heart temperature by 5°C. The differences in the kinetics can be better observed in Figure 3G, where the Ca²⁺-T traces were normalized. The smaller Ca²⁺-T amplitude illustrated in Figure 3E can be explained due to a shorter AP duration at higher temperatures. Particularly, all the kinetic parameters were significantly faster at higher temperatures (RT decreased from 25.0 ± 0.6 ms at 23.5°C to 19.25 ± 1.47 ms at 28.5°C; FT decreased from 334.1 ± 6.5 ms at 23.5°C to 271.0 ± 11.1 ms at 28.5°C; HD reduced from 382.6 ± 2.9 ms at 23.5°C to 308.0 ± 4.8 ms at 28.5°C; n=110 measurements at 23°C and n=120 measurements at 28.5°C; Figures 3H-3J, respectively).

• Heart rate dependency of APs and Ca²⁺-T: Modifications to the APs and Ca²⁺-T in response to an increased heart rate are presented in Figure 4. The time courses of APs as a function of the heart rate are presented in Figure 4A illustrates how an increase in heart rate significantly reduces APD30, APD50, and APD90 (Figures 4B- 4D respectively). It is likely the AP duration was reduced because the L-type Ca²⁺ channels did not recover from inactivation. Figure 4E shows how the amplitude of the Ca²⁺-T decreases as a function of the heart rate. The amplitude of the Ca²⁺-T as a function of the heart rate shows a statistically significant negative staircase behavior (Figure 4F). To evaluate how the heart rate changed the kinetics of the Ca²⁺-T, the traces shown in Figure 4E were normalized by their maximum amplitude (Figure 4G). Figure 4G indicates that not only the amplitude of the transient decreased but also the kinetics of this systolic event exhibit a strong change in its kinetic behavior compared to 1.2 Hz. Figures 4H-4J depict how the fractional amplitude, RT, FT, and HD of the Ca²⁺-T became smaller as a function of the heart rate.

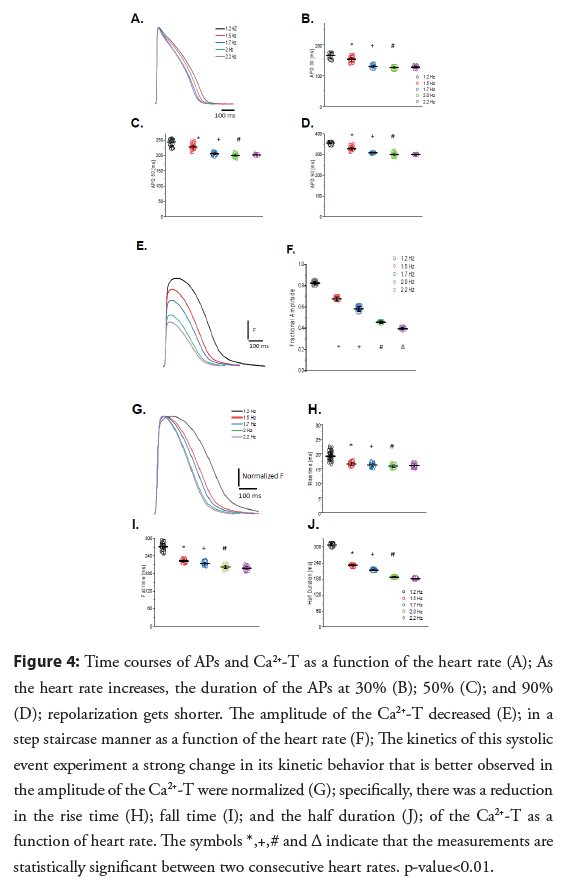

Figure 4: Time courses of APs and Ca²⁺-T as a function of the heart rate (A); As the heart rate increases, the duration of the APs at 30% (B); 50% (C); and 90% (D); repolarization gets shorter. The amplitude of the Ca²⁺-T decreased (E); in a step staircase manner as a function of the heart rate (F); The kinetics of this systolic event experiment a strong change in its kinetic behavior that is better observed in the amplitude of the Ca²⁺-T were normalized (G); specifically, there was a reduction in the rise time (H); fall time (I); and the half duration (J); of the Ca²⁺-T as a function of heart rate. The symbols *,+,# and Δ indicate that the measurements are statistically significant between two consecutive heart rates. p-value<0.01.

• Contribution of SR Ca²⁺ release to Ca²⁺-T and the repolarization of the AP: The calculated GainCICR was 2.25 ± 0.06 for the Goldfish heart. Figures 5A and 5B show that in Goldfish hearts, there is a significant amount of SR Ca²⁺ release. Interestingly, the inhibition of Ca²⁺ released from the SR also modified the repolarization of the ventricular AP. Figures 5C-5F show APs recorded at 23°C. The most likely hypothesis is that the AP gets longer because of the decrease of the Ca²⁺ dependent inactivation produced by the SR Ca²⁺ release. Interestingly, the Ryanodine and Thapsigargin effect we see in the Goldfish heart is very similar to the effects observed by other authors in dog hearts where the attenuation of Ca²⁺ release mediated by BAPTA also prolonged the AP [23].

The prolongation of the AP duration by Ryanodine and Thapsigargin was observed in Goldfish ventricular APs recorded at 23°C (Figures 5A-5C). Ryanodine and Thapsigargin still prolonged the AP duration at all the levels (Figures 5D-5F).

Discussion

Comparison between Goldfish hearts and other vertebrates

Goldfish hearts and body size are noticeably larger than that of Zebrafish (Figures 1A-1D), which immensely aids in successful dissection and extraction of a healthy intact heart. Due to this immense difference in physical size, Goldfish also have longer APs (Figure 1E) than the Zebrafish (Figures 1H and 1I). Interestingly, although the Goldfish lack a classical “spike and dome” behavior [13,14, 21], the APD90 in Goldfish (Figure 1F) is very similar to ones recorded in the endocardial ventricular layer of canine hearts [24] at a similar temperature (25°C). Even more, the Goldfish Ca²⁺-T present similar kinetic characteristics (Figures 1E and 1G) within canine hearts both in isolated myocytes [10] and at the intact heart level [11], something that is not observed for the Zebrafish (Figures 1H and 1J).

This is significant because the canine model has historically been the classic model to study human cardiac electrophysiology, as they are strikingly similar to one another.

Role of the L-type Ca²⁺ channels in excitability and contractility of the Goldfish heart

In most vertebrate species, the influx of Ca²⁺ through the L-type Ca²⁺ channel is critical in defining the time course of APs and is the main mechanism to trigger ventricular Ca²⁺ release. Results presented in Figure 2 depict the role of L-type Ca²⁺ currents in Goldfish excitability and its ability to activate the excitationcontraction coupling process.

Partially blocking the L-type Ca²⁺ current with 10 μM Nifedipine [24] (Figure 2A) significantly reduced all parameters that define the duration of the epicardial AP (APD30 reduced from 278.4 ± 12.4 ms to 210.31 ± 12.8.4 ms, APD50 reduced from 370.3 ± 8.8 ms to 283.6 ± 8.0 ms, and APD90 reduced from 481.5 ± 9.5 ms to 389.5 ± 16.9 ms; Figures 2B-2D, respectively; n=25 measurements) indicating the L-type Ca²⁺ is partially responsible for the duration of phase 2 during the AP.

One consequence of having a decrease in the influx of Ca²⁺ is a reduction in contractility. The results presented in Figures 2E-2J demonstrates not only is the Ca²⁺ transient attenuated during systole, but there is also a change in the kinetic behavior of the Ca²⁺-T. Previous studies have reported Nifedipine reduces the amplitude of Ca²⁺ in some fish models [13,25,26] but there is no evidence of Ca²⁺-T shortening. However, the shortening in the half duration of the Ca²⁺-T is observed in several mammalian models [9,16], which is very encouraging. The observed shortening in the half duration of the Ca²⁺-T (Figures 2G-2J) is likely due to the shortening of the AP duration (Figures 2A-2D).

Temperature dependency of APs and Ca²⁺-T

Fish cannot systemically regulate their body temperature. Therefore, the temperature of the water has a big influence on the physiological behavior of the animal’s cardiac function [27]. Figure 3 shows both the time course of the AP and Ca²⁺-T display a significant temperature dependency. Interestingly, the depolarization of the AP has a much lower temperature dependency than the repolarization (Figures 3A-3D). The repolarization can include multiple events that can be regulated by the Ca²⁺ released from the SR. Some mechanisms include the Ca²⁺ dependent inactivation of the L-type Ca²⁺ channel. The reduction in the AP duration as a function of the temperature increase has been reported by other authors in other fish models [28-31]. However, there was no information about the Ca²⁺-T amplitude and its temperature dependency in fish models.

Interestingly, raising the temperature by 5°C resulted in Ca²⁺-T having smaller amplitude (Figure 3E). Moreover, the decrease in the amplitude of the Ca²⁺ transient promoted by a temperature increase was statistically significant (Figure 3F), possibly due to a shorter AP at higher temperatures (Figures 3G-3J). If the AP is shortened, the duration of the L-type Ca²⁺ current will also shorten, thus less Ca²⁺ is brought into the cell. Interestingly, this response has been reported in other mammalian species [32,33] where experiments to measure the mechanical activity in Rabbit papillary muscle describes a very similar temperatures dependency. Though the authors conclude this decrease cannot be solely related to a decrease in the duration of Ca²⁺ release, as it could also be related to an increase in the rate of Ca²⁺ sequestration by the SR.

Heart rate dependency of APs and Ca²⁺-T

Goldfish hearts present both a frequency dependency of the AP duration (Figures 4A-4D) and a negative staircase behavior of Ca²⁺-T (Figures 4E, 4F). The profile of decrease of the AP duration at the three levels (i.e., APD30, APD50, and APD90), shows a similar profile. The decrease in the AP duration as a function of the heart rate is similar to the decrease observed for mammals [10,28,29] and other fish models [34-36].

Figure 4E shows how the amplitude of the Ca²⁺-T decreases as a function of the heart rate. The amplitude of the Ca²⁺-T as a function of the heart rate shows a statistically significant negative staircase behavior (Figure 4F). To evaluate how the heart rate changed the kinetics of the Ca²⁺-T, the traces shown in Figure 4E were normalized by their maximum amplitude (Figure 4G). Figure 4G indicates not only the amplitude of the transient decreased but also the kinetics of this systolic event exhibit a strong change in its kinetic behavior. Figures 4H-4J depict how the fractional amplitude, RT, FT, and HD of the Ca²⁺-T [36] became smaller as a function of the heart rate.

Another important outcome of the heart rate dependency in Goldfish hearts is the effect on the Ca²⁺-T amplitude (Figure 4E). Specifically, the appearance of a negative staircase behavior as the heart rate increases (Figure 4F). All the kinetic parameters such as the rise time, fall time, and half duration of the Ca²⁺-T become faster (Figures 4G-4J). The observed changes in the kinetics of the Ca²⁺-T have been reported for other fish models [34,37]. In terms of the negative staircase behavior of contractility, there are reports for other fish models related to a decrease in the amplitude of Ca²⁺-T [36]. Interestingly, not all mammals present a negative staircase behavior as a function of the heart rate in the amplitude of the Ca²⁺-T or the mechanical response. This could imply that Ca²⁺ dependent inactivation of L-type Ca²⁺ channels and a faster Ca²⁺ reloading rate of the SR play a larger role in Goldfish hearts in comparison with larger mammals.

Role of intracellular Ca²⁺ release on excitability and contractility

Ca²⁺ released from the SR can impact the repolarization of the AP through several mechanisms. For example, if the Ca²⁺ release from the SR is impaired, then Ca²⁺ dependent inactivation of L-type Ca²⁺ channels will shorten the APs for a larger Ca²⁺ release and will prolong the AP. On the other hand, the Na+- Ca²⁺ exchanger will prolong the AP for a larger Ca²⁺ release and it will shorten the AP for a decreased Ca²⁺ release. To evaluate how much the SR Ca²⁺ release contributes to the change in free myoplasmic Ca²⁺-T in the Goldfish heart during systole, Ca²⁺ released from the SR was abolished through perfusion with 10 μM Ryanodine to block the Ryanodine receptors and with 2 μM Thapsigargin to block the SERCA pump. Ryanodine and Thapsigargin not only significantly reduced the amplitude of Ca²⁺-T (Figure 5A), but also reduced the fractional release by roughly 55% (Figure 5B; from 1.0 ± 0.05, n=204 measurements to 0.45 ± 0.01, n=60 measurements).

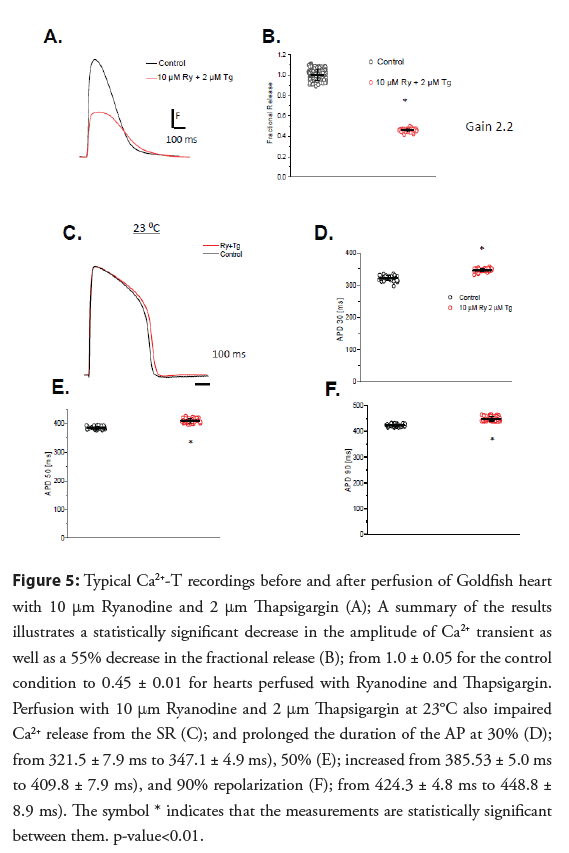

Figure 5: Typical Ca²⁺-T recordings before and after perfusion of Goldfish heart with 10 °m Ryanodine and 2 °m Thapsigargin (A); A summary of the results illustrates a statistically significant decrease in the amplitude of Ca²⁺ transient as well as a 55% decrease in the fractional release (B); from 1.0 ± 0.05 for the control condition to 0.45 ± 0.01 for hearts perfused with Ryanodine and Thapsigargin. Perfusion with 10 °m Ryanodine and 2 °m Thapsigargin at 23°C also impaired Ca²⁺ release from the SR (C); and prolonged the duration of the AP at 30% (D); from 321.5 ± 7.9 ms to 347.1 ± 4.9 ms), 50% (E); increased from 385.53 ± 5.0 ms to 409.8 ± 7.9 ms), and 90% repolarization (F); from 424.3 ± 4.8 ms to 448.8 ± 8.9 ms). The symbol * indicates that the measurements are statistically significant between them. p-value<0.01.

The role of SR Ca²⁺ released as a big contributor to the systolic Ca²⁺ during the cardiac cycle strongly depends on the vertebrate species. This wide range goes from frogs that do not present Ca²⁺ release from the SR [38] to mice the Ca²⁺-T strongly depends on the SR [9,22,27].

Figures 5A and 5B show that in Goldfish hearts, there is a significant reduction in the SR Ca²⁺ release. Interestingly, the inhibition of Ca²⁺ released from the SR also modified the repolarization of the ventricular AP. Figures 5C-5F show APs recorded at 23°C. The most likely hypothesis is that the AP gets longer because of the decrease of the Ca²⁺ dependent inactivation produced by the decrease in the SR Ca²⁺ release [25]. Interestingly, the Ryanodine and Thapsigargin effect we see in the Goldfish heart is very similar to the effects observed by other authors in dog hearts where the attenuation of Ca²⁺ release mediated by BAPTA also prolonged the AP [23].

Conclusion

Goldfish heart presents several physiological attributes to make it a good choice to study physiological and pathophysiological problems present in larger mammals, similar to humans. All these factors open the window for the Goldfish heart to be used to assess human cardiac function during health and disease.
